VoIP Problems and Solutions: The Ultimate Troubleshooting Guide

VoIP systems are vital, but they’re not perfect. If calls drop, audio lags, or your phone line is active with no sound, you’re not alone. Many users struggle with call forwarding errors, voicemail delays, or VoIP softphone glitches, all of which hurt productivity.

These issues usually trace back to network problems, outdated settings, or improper setup of your telephone system. This guide explains the most common VoIP problems and solutions using fundamental tools and tested steps.

No hype, just smart fixes to keep your line connected, clear, and ready for business.

🔑Key Highlights

• Poor audio in VoIP often comes from jitter, latency, or low bandwidth that disrupts conversations.
• Frequent call drops usually mean unstable internet connections or temporary provider-side issues.
• One-way audio and echo often result from misconfigured devices or codec mismatches in VoIP.
• Routers, NAT, and firewall restrictions can block VoIP traffic and reduce call reliability.
• VoIP systems are vulnerable to hacking and spoofing, so encryption and strong passwords are key.

What Are the Problems You May Be Facing Right Now While Using the VoIP Platform?

If you’ve been on a VoIP call that suddenly goes quiet or turns robotic, you’re not alone. Most VoIP users run into similar headaches. These issues aren’t always obvious, but they can severely impact your call quality, business communications, and overall productivity.

Let’s walk through the most common VoIP problems, from the ones that ruin meetings to the ones that silently eat into performance.

1. Choppy Voice and Audio Dropouts

This is one of the most reported issues. You’re mid-sentence, and the other side hears only fragments. It’s usually tied to packet loss, network congestion, or unstable internet speeds. Sometimes, your QoS (Quality of Service) settings aren’t prioritizing voice packets properly.

When this happens often, it can ruin customer calls and reduce trust in your business phone system.

2. Call Connects with No Sound (Oneway Audio)

This occurs when the call connects, but the caller or receiver hears nothing. Usually, the result of a router configuration error, SIP ALG, or some port blockage. This frustrates users the most because the line is active and connected, but useless.

3. Dropped Calls

So, your call just drops with no warning. No rationale. These are primarily a result of VoIP traffic congestion, application layer gateway conflicts, or a weak connection to the network.

4. Calls Go to Voicemail Unexpectedly

If inbound calls are jumping straight to voicemail unexpectedly, check your call forwarding rules and phone firmware. Sometimes, misapplied voicemail settings or delays from network traffic confuse the system into thinking the phone doesn’t ring.

5. Poor Call Quality During Peak Hours

This one’s tied to your local area network. When everyone’s streaming, downloading, and uploading during business hours, your VoIP system gets deprioritized. Without proper VLAN tagging and QoS settings, voice gets buried under general network issues.

6. VoIP Phone Doesn’t Ring or Misses Calls

Missed a client’s call even though you were at your desk? Check your VoIP devices, router settings, and test with speed tests or a ping test. I’ve seen misconfigured VoIP provider dashboards lead to half the team not receiving inbound calls.

7. Security Breaches and Unwanted Traffic

Sometimes, voice calls aren’t the only thing coming through

your VoIP network. Unmonitored systems may open the door to security breaches and unauthorized data packet activity. VoIP systems need constant updates and basic firewall hygiene.

These problems do not “just happen” but are usually symptoms of neglected settings, outdated devices, or improper handling of VoIP troubleshooting.

In the next section, I will discuss the external factors that initiate these problems and how to detect them before they negatively impact your work.

Moving on.

External Factors that Cause VoIP Problems

Even if your VoIP phone system looks perfect on paper, external conditions often decide whether your call quality holds up or fails. I’ve helped teams troubleshoot countless VoIP issues, and these five culprits come up again and again.

1. Unstable Internet Speeds

VoIP depends on consistent, high-speed internet. When internet speeds fluctuate, voice packets get delayed or dropped, which leads to choppy audio, robotic voices, or lag.

2. Network Congestion During Work Hours

When multiple users in the same local area network are streaming, uploading, or running backups, it creates network congestion. Without proper QoS settings and VLAN tagging, your voice data is prioritized. The result? Dropped calls and calls go to voicemail even though the line is active.

3. Misconfigured Routers and Firewalls

Many default router setups block or slow VoIP traffic. Features like SIP ALG often interfere with inbound calls or cause call connects with no sound. Always check router settings before assuming your VoIP provider is at fault.

4. Outdated Devices and Firmware

Old VoIP phones, outdated phone firmware, or ignored software updates lead to unpredictable problems. I’ve seen outgoing calls fail simply because the device couldn’t handle new VoIP system protocols. Always keep your VoIP devices updated.

5. ISP-Level Packet Loss

Sometimes the problem lies beyond your network. If your ISP is experiencing packet loss, your VoIP calls will suffer even with a perfect internal setup. Regular VoIP speed tests and ping tests can reveal hidden bottlenecks in your internet protocol path.

These external issues may seem out of your hands, but with the right tools and checks, you can stay ahead of most of them. Next, I’ll walk you through the resources and essentials you need to start fixing these problems today.

What Are the Resources and Things You Need to Find Solutions to These Problems?

Once the source of the VoIP issue is identified, the next step is gathering the right tools to fix it. Without proper resources, even the most advanced VoIP phone system can suffer from repeated call quality issues or persistent choppy audio.

Here are the essential tools and configurations that help resolve common VoIP problems efficiently.

1. VoIP Speed Test and Ping Test Tools

Tools like PingPlotter, VoIP Spear, or the built-in diagnostics from a VoIP service provider help test for packet loss, latency, and jitter, as well as inconsistent internet speeds. These tests will identify performance issues before they impact real-time voice calls or cause voice call drops.

Regularly running these tests helps maintain a healthy and stable network traffic.

2. QoS Settings and VLAN Tagging

Correct QoS settings and VLAN tagging will prioritize voice packets. This prioritization will minimize delay and packet distortion resulting from network congestion on a busy local area network (LAN) for VoIP traffic.

These settings can be adjusted directly from most business-class routers or VoIP system dashboards.

3. Access to Router and Firewall Settings

It is important to have access to the core router settings when troubleshooting. Disabling SIP ALG, opening the correct ports, and making sure that firewalls permit VoIP devices are essential to resolving any number of issues with calls connecting with no sound or inbound calls failing.

Firewalls must be tuned not only to support stable VoIP connections but also to mitigate any false security alarms.

4. Updated VoIP Devices and Firmware

Nothing accelerates errors, glitches, bugs, and other problems faster than old VoIP phones and firmware. Updated phone firmware keeps devices up to speed with new features, plus supports superior call quality over the phone.

Device updates should be scheduled monthly on all endpoints.

5. Reliable VoIP Provider with Support Access

Having a VoIP provider that offers support in real-time, live diagnostics, and detailed call logs can reduce downtime considerably. When managing emergency calls, reviewing call volumes, helping trace problems with voicemail, or addressing any other issues you may have, a strong support team can make all the difference.

Providers should also deliver on-demand diagnostics, support for application layer gateway configuration, and easy escalation if outgoing calls or phone lines are interrupted.

6. Network Monitoring and Traffic Tools

Tools like Wireshark, NetFlow, or built-in router monitors show where data packets go, what’s causing network congestion, and how much bandwidth is being used. These are critical for long-term performance tracking of a VoIP system.

Early detection prevents minor slowdowns from turning into full VoIP outages.

Having these resources on hand ensures that troubleshooting is fast, effective, and long-lasting. The next section will walk through step-by-step solutions to each of these issues, built for reliability and repeatability.

Step-by-Step Solutions/Troubleshooting to Each of These Problems (by Device)

When it comes to troubleshooting VoIP issues, guesses are unnecessary. Most problems, such as choppy audio, dropped calls, and one-way audio, will have you up and running again in no time with the right methodology.

The information below is a framework to help solve the most common VoIP issues, applicable steps, and tools that you’ll typically find in any modern VoIP phone system.

1) Smartphones

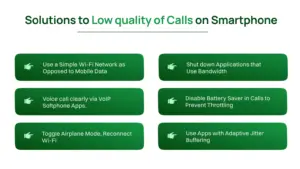

Low quality of Calls

• Use a Simple Wi-Fi Network as Opposed to Mobile Data:

The swiftness of mobile data may vary and lead to packet loss or jitter, thus making the call bad. You should always ensure that your smartphone is attached to a good Wi-Fi network, and more so, with a strong signal strength.

• Shut down Applications that Use Bandwidth

Other apps that run in the background, such as social media, streaming, or cloud syncing apps, may heavily consume the bandwidth and computer processors. By minimizing these apps, you will be liberating network bandwidth and device bandwidth so that your VoIP calls can have their share.

• Voice call clearly via VoIP Softphone Apps.

So not every VoIP app is as good. Select the softphone applications like Dialaxy, the settings of which are optimized for audio. Such apps are more controlled of the network fluctuation, providing you with clear voice calls all the time.

• Turn Off Battery Saver Mode in Calls to Avoid Getting Throttled

Smartphone battery saver modes commonly disable background data connections and max out the CPU in order to conserve power, which can inadvertently throttle the operation of the VoIP apps being used to place a call.

By switching off battery saver when you connect to a VoIP connection, this blockade does not happen, and your connection can have full bandwidth and computing capacity to carry your call.

• Place Your Phone in Airplane Mode And Reenable Wi-Fi Again in Case of Interference

Wi-Fi performance and VoIP call quality can be interfered with by the mobile network signals. Switching airplane mode might clear the network when it is experiencing conflicts or glitches that result in problems with calls by temporarily disabling cellular radios, followed by automatically reconnecting to Wi-Fi with no problem.

• To clean up voice glitches, employ Apps that use Adaptive Jitter Buffering.

Adaptive Jitter Buffering Adjusts the in steady packet reception by buffering the audio packets and playing them at a good audio rate. Applications of VoIP technology that support this feature will ensure smooth or undistorted audio even during unstable times in networks, thus enhancing call quality.

Latency & Jitter

• Wi-Fi Band change to the 5GHz Band

By employing the 5GHz Wi-Fi band, speeds and interference are reduced and faster compared to 2.4GHz. This eliminates the time lag and the loss of packets, leading to jitter and latency when making VoIP calls. Always ensure that your gadget is connected to the 5GHz network.

• Avoid activities that have high bandwidth requirements

Such activities as streaming videos, gaming, and other activities that require huge bandwidth may cause network congestion. When making VoIP calls, such activities should be reduced or stopped to give voice packets significant priority, which are vital to the stability of the call and jitter reduction.

• Put your phone into Restart before Extended Calls.

Latency and jitter can be raised by temporary network or memory glitches. Resting your smartphone or computer before starting your long or important calls refreshes them and allows you to get a better connection.

• Enable Low-latency or Soft Dial-tone Modes

Typically, available low-latency (or soft dial tone) modes on some VoIP apps allow voice traffic to be prioritized and delays reduced. To use these features, you need to check the app settings. This assists in the provisioning of a smoother quality of the calls, particularly in a busy network.

Dropped Calls

• Have the VoIP App Keep in Foreground

It is essential that the VoIP app be kept active and in the open when making calls. The phone system can drop the network when the app enters background usage or sleep mode, and the phone system may interfere with the call or drop the call as well.

By remaining in the foreground, it will be connected with no interferences and clear voice calls.

• Turn off the Aggressive Battery Optimization

Numerous contemporary smartphones include battery saver modes to restrict background data harshly in favor of power preservation. Turn off these parameters of your VoIP app so that it can stay connected and have no abrupt problems in its connection quality or call interruptions caused by the network’s restricted access.

• Install Call-Optimized VoIP Apps

Select applications such as Zoiper or Bria that are intended to be utilized for VoIP repair and call forwarding. These applications effectively handle voice packets, lessening the jitter as well as the latency, and this assists in avoiding call drops and enhances the overall call quality.

• Activate Fallback Call Forwarding

Get call forwarding configured on your VoIP platform, such that in case a call randomly drops, the incoming calls would be redirected to some other number or device.

This allows you to be contactable even in case of network failure or any problem with your main device’s VoIP.

One-Way Audio

• Give Voice Allowed Microphone and Speaker Permissions to the VoIP App

Make sure that your VoIP application has all the privileges to use the microphone and speakers of your device. In the absence of these permissions, voice calls may not transmit audio correctly, and in some cases, only one side of the conversation hears the audio.

You should want to make sure that what you are seeing is correct by checking the privacy settings of your phone or computer.

• Restore Network Settings In The App or Uninstall The App

In case audio problems continue recurring, the network settings in the VoIP app should be reset. This rem также libudes any corrupted settings that may lock out the voice packets to the telephone exchange so that they are not received appropriately.

In case the reset does not resolve the situation, we can uninstall and reinstall the app, as it will restore all the permissions and network settings.

• Audio streams could be blocked by VPNs, and temporarily disabling such VPNs could help.

VPNs can also have a detrimental effect on VoIP, as they can cut off the signal or hijack packets of data, so there is no audio or one-sided conversation.

When testing, disable any active VPNs you may have to see whether these are the cause of the issue, and make sure that your VoIP phone system has the capability to transmit both incoming and outgoing audio with increased clarity.

• NAT Handling: NAT Handling done at the router should assume usage of ICE servers or TURN servers.

Configuring NAT on the firewall may resolve the problem where the audio is one-way, because the audio is not able to reach the intended device due to NAT. Offer the ICE (Interactive Connectivity Establishment) or TURN (Traversal Using Relays around NAT) servers settings on your router to enable NAT traversal and stable two-way audio during a call.

App Crash or No Connection

• Clear Cache

First, get rid of the cache of the app in the settings of your phone or tablet. This deletes temporary files that can be corrupted, unneeded, and thus very likely to bring down a crash, or crash during startup.

Once cleared, reboot the VoIP softphone application and make sure that it is working again. Needless to say, this is the easiest solution to most minor glitches in the app.

• Determine whether the VoIP Softphone Needs a Certain Port to be Opened on the Network

A large number of VoIP softphones use dedicated ports (such as SIP 5060) to connect to the telephone network. In case those ports are blocked on your router or firewall, the app would crash or not be registered.

Log in to the router or request your IT admin access and enable the necessary ports and VoIP traffic.

Unsteady Dial Tone or No Tone

• Download and update the App and provide network access

Ensure that your VoIP soft phone application is the latest version. The old applications tend to possess bugs pertaining to dial tone production or audio directing. Also, get into the settings of your device and verify that the app will access all networks.

The dial tone has to be turned on so that Wi-Fi and mobile data can announce that the line is occupied.

• Be sure the dial tone generation feature is enabled in the app settings

Soft dial tones are an optional setting in many VoIP phones and applications. Enter the settings of the app, go to the part with audio or telephony, and make sure that dial tone generators are active.

When this is turned off, you will not hear the melody that is played when the phone line is clear and available to the user to make calls.

Call Forwarding Not Working

• Visit the Settings Tab of the App and Manually Switch ON the Call Forwarding

Launch your VoIP softphone or phone system application, and under this, you will find the settings. Under the call forwarding or call answering rules section should be the place.

After that, you have to enable the call forwarding option and insert the number to which you would like to forward the calls. This will make sure that your line remains open in case it is to be redirected when the first line is busy or unavailable.

• Go to the Carrier or VoIP Provider, Check Call Forwarding Rules

In case forwarding fails to engage, log in to the dashboard of the VoIP provider or telephone system. Certain services handle the forwarding of calls at the server level-ensure there is a correct redirection in the call log, with no block rules hampering.

Get in touch with support when forwarding is not in your existing plan.

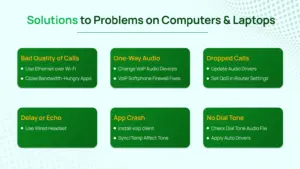

2) Computers & Laptops (Windows/macOS/Linux)

Bad Quality of Calls

• Use Ethernet over Wi-Fi

When you see a jerky sound or a delay, use a wired connection instead of Wi-Fi. A wired connection is more stable and faster, which helps to avoid audio drop-out and enhance the VoIP dial tone and clarity of the phone.

In a digital system or an automated switching system, this is of paramount importance since it uses constant bandwidth.

• Close Intensive Apps (e.g. Chrome Tabs) that Guzzle Bandwidth

Close any applications or tabs on your browser, especially Chromium, that are taking up your network. They take up resources, resulting in voice hang-ups and lags.

Prior to getting a call, turn off streaming services, cloud synchronization, or anything that uses bandwidth. This makes sure your VoIP softphone is given the priority necessary to have clear, continuous calls and also the generation of dial tone.

One-Way Audio

• Change the Input/Output Device VoIP softphone settings

Click on the audio settings of your VoIP softphone. Manually run through choosing the proper microphone as input, and speaker or headset as output separately. By defaulting to system settings, one often results in mismatches following restarts of the devices.

This will assist in making the line active, and you can hear and be heard without any interference.

• VoIP Softphone Configurations to fix Firewall Problems

In both scenarios, the telephone system software can be permitted over the private and the public network profiles. It is also a good idea to see whether SIP and RTP ports are open.

Lack of this will mean that telephony signals do not get passed through, resulting in one-way or dead calls.

Dropped Calls

• Update Sound Card Drivers

Old or poor-sounding drivers may interfere with your phone system and result in lost VoIP calls. On Windows, open the Device Manager, and on macOS, System Preferences, and update your sound card drivers.

Staying up to date with them also means you will keep your line in operation and make sure your audio devices are compatible with your VoIP software.

• Configure QoS in Routing Options in the Routers Setting

In the router settings, log in and turn on Quality of Service (QoS). Prioritize VoIP phone dial tones and SIP traffic such that your system can prioritize voice calls to be given more travel bandwidth than others.

This enhances reliability, even when there is heavy traffic, helping to maintain your telephony signal at a steady state and forwarding of your calls, uninterrupted.

Delay or Echo

• Use Wired Headset; do not use Built-in Mic/Speaker Combo

It is also advisable not to use your laptop mic and speakers because they usually interfere, creating an echo of repeated submission. Older ones require a wired headset instead.

This guarantees precise telephony signals and less feedback, thereby allowing the user to connect and communicate conveniently through your VoIP soft phone or through your telephone exchange with no disruptions.

Sometimes, there are audio enhancements by third parties that enhance the original audio. It is possible to disable the audio enhancements.

Open your audio settings and disable the features such as loudness equalization or virtual surround. These have the potential to create additional unwanted latency that can bring latency in the dial tone of your VoIP phones.

Setting them to disabled will provide you with a line that is live, having real-time audio or making your digital systems and calls superior.

App Crash

• Install voip client

When your VoIP softphone crashes or lags so much that it’s unusable, remove it entirely and install the most up-to-date version. This usually clears up corrupted settings or lacking elements, which can influence the manner in which your telephone system operates.

A clean installation will make the automated workflow smooth and cause the reliable dial tone generation, especially when working with voicemail messages or call logs.

• Problem Between Calling- or Voicemail Message Syncing and Dial Tone Indicators or Temporary Files Affecting Dial Tone Indicators

Temporary files accumulate with time and can disrupt dial tone warnings, voicemail synchronization, or even call receiving guidelines. Clean unnecessary files in the temp folder of your system or use disk cleanup tools.

This shall keep your phone line operational and ready, thus boosting the functioning of your unified messaging functions.

No Dial Tone or Dial Delay Tone

• Make sure the Audio File to be used in dial tone generation is not corrupted.

First, check that the audio file used to generate the dial tone is available and not damaged, in case you are not hearing a dial tone or there is a delay. Go to the VoIP soft phone settings and test the sound.

When it does not play correctly, use a new file or reinstall the tone pack. When there is a working dial tone, that means that your line is in an active position and you are free to use it.

• Apply Auto Drivers or Reboot SIP Software

Obsolete or improperly configured drivers may mess with your telephone system. Disable your custom audio drivers and restart the SIP client (such as Zoiper or Linphone) and switch back to your system default audio drivers.

This refreshes your telephony signal such that the tone that is played when the line is connected complies with normal digital systems. This is an easy solution that tends to rectify the problem cases of tone delay.

Call Forwarding Issues

• Make Reconfiguration of Call Forwarding Rules in Software

In case of failure in call forwarding, recheck the VoIP softphone or the messaging system settings.

The next step is to go to the call answering rules or call forward section and ensure they are configured properly, in particular when the call is being directed to your system when idle or offline.

These guidelines can help any user to be reachable even when their primary phone line is off.

• Ensure There are No Contradictory Active Directory Permissions

Active Directory permissions may override or at least prevent the call forwarding setups in corporate setups. Make sure that your user mailbox or account is allowed to set up the call answering and call forwarding options.

Work with IT to revise policies where necessary, to track voicemails, text messages, and incoming fax messages via a common line in unified messaging environments so that existing policies have the opportunity to capture them.

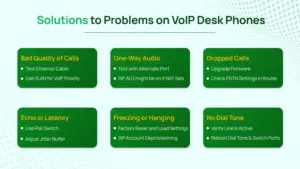

3) VoIP Desk Phones (e.g., Cisco, Yealink)

 Poor Call Quality

• Test Ethernet Cable and Network Port

Begin with a physical examination of the Ethernet cable to go along with the network port attached to your VoIP desk phone. A poorly connected or bad connection may cause static, jitter, or packet drops.

Change broken cables and adopt high-quality Cat 5e or higher. Using a good wired connection ensures that your line is always active and enhances quality cell phone communication.

• VLAN to Prioritize VoIP Traffic

In order to alleviate network congestion, set up the router or switch to put the VoIPs on individual VLANs for desk phones. This separates voice traffic and data to create a precedence of bandwidth for the voice.

 One-Way Audio

• Allotment with test Other Port

In case users are having one-way audio, experiment by plugging the desk phone into a new Ethernet port or switch port. At other times, the problem might lie in faulty hardware or bad VLAN labeling of certain ports.

• SIP ALG may be enabled in case of NAT Traversal Failure

Where phones must go behind routers that provide NAT (Network Address Translation), there is a solution that may be implemented on the router- NAS (Network Address Translation), SIP ALG (Application Layer Gateway).

t re-interprets the SIP headers to allow audio streams to go through the firewall in the right manner.

In case of a call log with no audio despite connections, the setting can correct the faulty flow of a telephony signal.

Dropped Calls

• Upgrade Firmware

When your VoIP desk phones keep dropping calls, this could be because of some obsolete firmware. Go to the manufacturer’s website (e.g., Cisco or Yealink) and update the firmware to the most recent version.

• View Public Switched Telephone Settings in the Router or Firewall

Dropped calls may also arise due to poor configuration of public switched telephone network settings, particularly where VoIP systems are used to communicate with SIP trunks. Check over your router and firewall configurations upon SIP timeouts, NAT bindings, or UDP session limits.

An improper match of settings or a wild setting may create a disconnection of the line in the middle of the call, even when the line is busy.

Echo or Latency

• PoE Power Switch Rather than External Power

Power over Ethernet (PoE) gives a stable, continuous power on the Ethernet cable itself. This stability minimizes electrical noise and variation in power that would cause echo or latency.

• In Device Configuration Adjust Jitter Buffer

Jitter buffer corrects the irregularities in the timing of sending voice packets. In case of echo or latency, reach the settings of your VoIP desk phone and increase the jitter buffer size step by step.

This manipulation decreases the packet delay of voice data and overrides inconsistencies of a network typical of switching systems and public switched telephone networks.

Freezing or Hanging

• Rest to Factory and Load Setting

In a case where a VoIP desk phone freezes or fails to respond, one can begin with a factory reset. This eliminates corrupted settings or firmware bugs that can interfere with the generation of a dial tone or call record.

Once this has been reset, loading back the lines config file successfully will allow the connection to work again on your VoIP or provisioning system.

• Deprovisioning Of SIP Accounts

There might also be freezing because of software conflicts caused by multiple inactive or misconfigured SIP accounts. Enter the admin console of the phone and disable or remove SIP numbers that are not used.

No Dial Tone

• Check That the Line Is Open and Alive

Ensure first that the line is live on the network. This involves drawing out the physical Ethernet connection as well as checking the registration of the device to the telephone system or the private branch exchanges.

Where the phone is not indicating a registered or a connected status, then the phone line cannot be used, and no dial tone will be heard.

• Reboot Dial Tone Generators and Switch Ports, Where Necessary

The phone itself also may still not be generating a dial tone even though it is connected. Restart the phone and the connected dial tone generators. It might also be necessary to power-cycle the network switch port that the phone is connected to or to reassign the port to the VLAN to get full connectivity back at all.

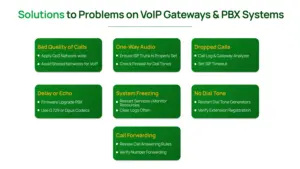

4) VoIP Gateways & PBX Systems

Bad Call Quality

• Set QoS throughout the Network

Configure Quality of Service (QoS) on your routers and switches and give priority to VoIP traffic. This minimizes packet loss and delay because voice packets are prioritized to receive service before other data that is less time critical, it enhances the quality of the call, and also eliminates latency and jitter.

Rethink your use of Shared Networks: VoIP.

Having your VoIP Gateways and PBX systems on separate or segmented networks also avoids having them shared by high traffic of data. This eliminates the overloading effect by other users or equipment that may cause congestion and block your telephone system, leaving you without a dial tone.

One-Way Audio

• Make Sure that the SIP Trunk is Set Properly

Make sure all your settings on your SIP trunks are accurate and can work fully with your telephone exchange and switching systems. Misconfigurations can block the audio streams, leading to one-way audio problems. Check codec settings and NAT traversal settings twice.

• VoIP: Phone Dial Tones Check Firewall Rules

Check the firewall and router configuration to ensure that VoIP phone dial tones and associated signaling ports are opened. One-way audio problems are common because firewalls tend to hinder RTP or SIP traffic and thus block audio transfer. Bust open the ports or set the firewall exceptions as required.

Dropped Calls

• A Call Log & Gateway Analyzer

Check your call log of your VoIP gateway or phone system switch to see where you have had dropped calls to verify the trend or reason. Seek an error, such as SIP timeouts or other connection failures, that could signal the point of the break.

• Change the Timeout settings of the SIP Profile.

Change your SIP trunk or profile settings timeout and keepalive. Well-set timings are useful when it comes to keeping open sessions as well as avoiding cutting off calls by network mishaps or turbulent connectivity.

Echo or Delay

• Firmware Upgrade PBX

Make sure the firmware of your PBX system is upgraded. Echo cancellation and latency handling may also be improved as part of a firmware update, which may dramatically cut out the annoying echo and delay during conversations.

• Use G.729 or Opus as the Switch Codecs

Adjust the codec setting of your system to more effective codecs such as G.729 or Opus. They are coded to make the most efficient bandwidth and reduce latency to help minimize echo and enhance the overall quality of a call.

System Freezing

• Services: Reboot and Resources: Monitor

In case the PBX system freezes, restart core services and review the use of CPU/memory. The telephony signals and call processing may be disrupted when served by overloaded resources, especially automated switching systems or when the process involves large volumes of calls being logged.

• Empty Logs Frequently to prevent overflow.

VoIP gateways keep logs of all the incoming calls, voicemail, or divert calls. Failure to clear logs may lead to overflowing, hence the system hangs. Plan to purge logs on a schedule to keep the phone line awake.

No Dial Tone

• Reactivate Dial Tone Generators within the PBX interface.

And in case of the absence of the dial tone, initiate the dial tone generators by restarting through the PBX administrative panel. These are in charge of the tone playback, and they are used as signals when the line becomes active so that the user can place a call. It could be saved by a reboot.

• Check That the Extension Registration is Done

Also, verify that the extension is registered completely with the PBX. Uncompleted and unsuccessful registration prevents the generation of dial tone and call forwarding, call logging, and other telephone exchange capabilities.

Problems in Call Forwarding

• Recheck Call Answering Rules

In case call forwarding does not take place, check the call answering rules on the PBX. Such regulations assist these workers to call out or forward a call when they are not in a position to attend. Broworkflowkflo:: The call-forward logic can be broken because of misconfigured logic.

• Trunk Provider Confirm Number Forwarding

There are also times when it is the problem of the trunk provider. Make sure the forwarding number is properly subscribed and accepted by the system of the provider.

This is to make sure that the telephone network delivers the calls to the correct path, even with the use of an automated switching system.

Focusing on the individual concerns of each type of device, such as headset lag or PBX misconfiguration, keeps your entire VoIP environment continually alive and fit, so that users can dial, connect, and hold high-quality conversations with all the phones in your system.

In the following part, the emphasis is going to be laid on the way to avoid these problems in the future by implementing a more robust VoIP system, practically speaking, starting with the bare basics.

How to Make Sure These Problems Aren’t Repeated

Solving VoIP issues once is good. Preventing them from coming back? Even better. A few small habits and configurations can keep your VoIP phone system running clean, even under heavy network traffic or call volume.

Here’s how to stop problems like dropped calls, choppy voice, or voicemail issues from returning.

1. Weekly VoIP Performance Testing

Testing your system with VoIP speed test and ping test sites, as well as maybe packet monitoring apps, all help to find early signs of packet loss, latency, or bandwidth congestion, long before they impact the quality of the calls.

Make testing a monthly habit, even if your business is not experiencing customer call issues. Set yourself calendar reminders or automate any testing from your VoIP dashboard if available.

2. Monthly QoS and VLAN review

Once you have configured QoS settings and VLAN tagging, it can easily fall out of sync, especially after rebooting routers or with firmware updates. Make it a habit to routinely verify that voice packets are still a priority on a local area network.

Be sure to confirm that VoIP traffic is properly separated from data tasks that have higher priorities – to avoid issues with a media sharing app competing for bandwidth with a call.

3. Update Devices and Firmware Promptly

Outdated phone firmware is one of the most overlooked causes of recurring VoIP problems. Whether using desk VoIP phones, adapters, or softphones, ensure devices auto-check for updates or are included in monthly IT maintenance cycles.

This also helps prevent call forwarding bugs or broken voicemail functionality.

4. Keep Firewall and SIP ALG Rules Audited

Set a quarterly review of router settings, focusing on firewall rules and SIP ALG. If a call connects with no sound or one-way audio appears again, misconfigured security settings are often the root cause.

Log all changes so they can be quickly reversed if needed.

5. Train Teams on VoIP Best Practices

Users often trigger avoidable issues by unplugging devices, changing settings, or ignoring error signs. Provide short training on how to recognize call quality issues, how to log a problem, and how to safely reboot VoIP devices.

Clear SOPs reduce downtime and keep business communications running smoothly.

Preventative habits are easier than emergency fixes. The next section will cover best practices to keep your VoIP system optimal, even as your team, tech, and traffic continue to grow.

Best Practices for Proper Maintenance of Your VoIP System to Avoid Future Issues

Maintaining a stable and productive VoIP system is not a fix-and-go; it is a process. Below are the recommended best practices to maintain the best call quality, avoid future VoIP dilemmas, and ultimately keep your system from asking you to fix an error.

1. Prioritize VoIP Traffic Using QoS

Ensure you have QoS settings established on your router, dedicated to VoIP priority over the data. Doing so will allow voice packets not to be delayed or dropped during general data spikes.

If your local area network setup prioritizes voice correctly, you’ll experience fewer dropped calls and crystal clear audio. Maintaining a consistent configuration on your network will also mean traffic is prioritized correctly.

2. Monitor VoIP Metrics Regularly

Regularly monitor VoIP metrics using ping tests, VoIP speed tests, and call logs to monitor latency, jitter, and packet loss. Monitoring is essential to catch small issues before they become big VoIP troubleshooting issues.

More importantly, you may set up notifications from your VoIP provider or third-party application to monitor these metrics as soon as they are available to you.

Being proactive is key to reducing reactive downtime.

3. Keep All Devices and Firmware Updated

Outdated phone firmware or VoIP devices are often behind call connects with no sound, one-way audio, or voicemail failures. Always check for firmware updates on VoIP phones, routers, and softphones.

Updated systems close security gaps and increase reliability.

4. Develop a Redundant Call Flow Plan

Configure call forwarding, voicemail fallback, and alternate endpoints for both incoming and outgoing calls. If one point fails, be it pure network congestion or hardware, if a proper failover plan is in place, a total blackout can be avoided.

Redundancy provides your safety net when things fall apart unexpectedly.

5. Educate Users and Document Settings

Document how to use VoIP softphones, how to deal with call forwarding, and how to do some basic troubleshooting. Train staff to recognize basic issues such as one-way audio, busy signals, or soft dial tones. If users know what to look for, minor issues will not propagate.

An informed team reduces support tickets and keeps workflows smooth.

The next step is knowing where this space is heading. Let’s explore the VoIP trends to keep an eye on because staying updated is how to stay ahead. Ready for that?

VoIP Trends to Watch for Updates and Error-Free Performance

Keeping up with current VoIP trends is a key factor in making sure a system stays efficient, secure, and error-free. Digital systems are advancing quickly, and being left behind can lead to problems with compatibility, call quality, and voicemail tones.

Below are the top trends that influence the future of VoIP phones and what they mean for users.

1. AI-Backed Call Routing and Workflow Automation

AI is now being used in smart call forwarding, call routing, dynamic call log management, and even predictive voicemail message routing. It enhances both speed and accuracy, along with the features of automated switching systems.

Smart routing reduces busy signals and directs calls based on caller intent—not guesswork.

2. Cloud-Based PBX and Remote Management

Small businesses are shifting to cloud-based private branch exchanges, giving full control over their telephone system via online dashboards. This trend removes the need for physical servers and allows real-time troubleshooting, remote access, and easier VoIP softphone deployments.

Cloud setups ensure the line is active and ready from any location.

3. Integration With UC Tools Like Microsoft Teams

Unified communication tools now allow users to handle text messages, voicemail, and incoming calls all from platforms like Microsoft Teams. Seamless calendar integration and call answering rules are replacing traditional telephone exchanges.

Bringing all types of messages into one hub cuts down on user errors and missed calls.

4. Advanced Security and SIP Border Controllers

With VoIP threats increasing, border controllers are being upgraded to better monitor incoming calls and protect VoIP phones from spoofing or denial-of-service attacks. Features like encrypted audio files and caller ID verification are now standard.

A secure telephone network ensures every line is connected, without compromise.

5. Predictive Maintenance and Analytics

Smart systems now use AI to monitor telephony signal quality and trigger alerts before the user even notices an issue. This includes dial tone indicators, special information tones, and real-time call logging for support teams.

Proactive monitoring keeps the phone line active and problems invisible to users.

Now, let’s wrap it up and bring everything together in the conclusion.

Final Thoughts

VoIP technology offers lots of flexibility, but can also be unforgiving. There are many potential issues that can disrupt your communication, from call quality issues to delayed dial tone generation.

By learning what the specific problems are, identifying the right resources, and applying some tried and tested troubleshooting steps, you can keep your phone system up and running.

Consistently following best practices—like monitoring call logs, ensuring the line is connected, and updating your VoIP softphone setups—keeps your system stable. And with workflow automation and real-time analytics now available, there’s no excuse for letting your telephone network fall behind.

Don’t wait for the next busy signal or dropped call. Review your current system, apply the strategies above, and stay alert to VoIP trends that can strengthen your setup.

FAQs

Why is there no sound even though my phone line is active?

This usually means the line is connected, but there’s an issue with your VoIP softphone settings or a misconfigured NAT traversal. Check your router’s SIP ALG settings, and ensure your VoIP phone dial tones are functioning to confirm the line is ready for communication.

How do I fix call forwarding not working on my telephone system?

First, confirm if call forwarding rules are set up correctly in your private branch exchanges or cloud communication platform. Misrouted SIP packets or an outdated automated switching system can block calls from forwarding. Use a test number to verify forwarding paths.

Why do I hear static or distortion during incoming calls?

Poor call quality during incoming calls often results from network jitter, low bandwidth, or improperly optimized VoIP softphones. Use tools like jitter buffers and check if your phone line is active during peak usage. Also, monitor your digital systems for overload.

What causes my voicemail messages to get delayed or not show up?

Delayed voicemail messages usually point to storage issues in your messaging system or bugs in your unified messaging UM configuration. Make sure your user mailbox is synced with your mail systems, and check your call log for missed delivery attempts.

How can I know if my VoIP system is ready for users to dial?

A working dial tone is the first indicator that the phone line is ready. If there’s no dial tone generation, check your dial tone indicators or test with known tone played files. A properly configured telephone network will also reflect active switching systems.

Why does my phone say “line is connected,” but I can’t start dialing?

Even if the line is connected, issues like faulty dial tone generation or broken audio files can prevent the system from signaling that the line is active. Confirm that your dial tone indicators are working and that your phone system is set to auto-trigger a tone once the user dials is detected.

What’s the difference between a busy signal and a special information tone?

A busy signal means the number is in use, while a special information tone (SIT) alerts users that the number is invalid or unreachable. Both telephony signals play an important role in guiding users through a telephone exchange or automated switching system, helping troubleshoot failed call attempts.

Why isn’t my VoIP softphone ringing for incoming calls?

Check if your call answering rules are enabled and if the soft dial tones or ringtones are playing correctly. Also, make sure your VoIP phone dial tones and unified communication settings are properly configured to receive incoming calls and push alerts to users, so they can access them in real-time.
