Understanding Bandwidth Requirements for Business VoIP

Clear and steady communication is essential today, especially if you rely on VoIP. Whether you’re setting up a small business phone system or running a busy call center, understanding how much VoIP bandwidth you need is key to keeping everything running smoothly.

Bandwidth determines how well your VoIP phones perform over your internet connection. Too little, and you face call quality issues like lag, dropped calls, and distorted audio. Too much, and you’re wasting resources.

In this guide, you’ll find everything you need to know about VoIP bandwidth requirements, how to measure them, and how to optimize your phone system for the best possible performance.

🔑Key Highlights

• If your bandwidth is too low or unstable, you’ll face issues like call drops, delays, and poor audio clarity.
• Using high-bandwidth codecs or making multiple calls at once without proper planning can quickly eat into available resources.
• Poor VoIP performance damages your business reputation, frustrates customers, and makes internal communication inefficient.
• Prioritizing VoIP traffic and reducing other online activity during calls can drastically improve call quality.
• Running speed tests and monitoring VoIP systems lets you stay ahead of performance issues before they disrupt your workflow.

What Is Bandwidth for VoIP?

Bandwidth for VoIP refers to the amount of data your internet connection needs to transmit voice calls smoothly over the internet. When you make a call using VoIP phones, your voice is broken down into data packets and sent through the network. The more bandwidth you have, the better your call quality will be.

Each VoIP calling session consumes a small but steady stream of bandwidth. If your internet speed is too low or your connection is unstable, you may experience packet loss, delay, or choppy audio.

That’s why VoIP bandwidth requirements must be considered carefully before choosing a VoIP provider or setting up your phone system.

In short, bandwidth plays a critical role in ensuring that your voice calls are clear, uninterrupted, and professional, especially in a business VoIP environment where multiple concurrent calls happen alongside other online activities like video meetings, text messaging, or file transfers.

To avoid issues, always check your bandwidth usage, run a speed test, and calculate your actual bandwidth requirements based on how many users and devices share your VoIP network.

This ensures your VoIP system runs reliably, whether you’re in a home office or running a contact center.

Why Bandwidth Is Important for VoIP Systems

Bandwidth is the backbone of any reliable VoIP system. Without it, even the best VoIP provider can’t guarantee good call quality. When you’re using VoIP phones, your voice travels as data packets over the internet connection. If there isn’t enough bandwidth, those packets get delayed, dropped, or arrive out of order.

That’s exactly when you start noticing quality issues like echo, static, or robotic voices. In short, poor voice quality usually means your phone system doesn’t have enough bandwidth to keep up with demand.

In a business VoIP setup, this matters even more. Whether you’re handling concurrent calls, video meetings, or customer stories in a contact center, your small business communication depends on smooth, uninterrupted data flow.

How Does VoIP Use Bandwidth?

A VoIP phone system breaks your voice into small data packets and sends them through your internet service provider’s network. These packets must move quickly and in the right order for the other person to hear you clearly. That process uses both upload speeds and download speeds.

Each phone call typically uses around 100 kbps per direction. Multiply that by the number of concurrent calls, and you’ll see how fast your bandwidth consumption grows, especially if you’re also running text messaging, cloud PBX, or other online activities.

VoIP also competes with everything else on your network. If someone in your office is downloading large files or streaming video, it can choke the bandwidth and ruin your VoIP calling experience.

This is why it’s essential to:

• Use VoIP bandwidth calculators
• Review your internet plan.
• Monitor your data usage.
• And prioritize voice traffic on your VoIP network.

By understanding how bandwidth refers to both the size and stability of your connection, you can protect your customer experience and optimize your call data flow.

How Is VoIP Bandwidth Measured?

When setting up or optimizing a VoIP phone system, knowing how VoIP bandwidth is measured helps you avoid poor call quality and unnecessary downtime. I’ll walk you through the key units, metrics, and what they mean for your VoIP calling experience.

1. Bandwidth Units: Kbps and Mbps

Bandwidth is the amount of data your internet connection can handle per second. It’s usually measured in Kbps (kilobits per second) or Mbps (megabits per second). 1 Mbps equals 1,000 Kbps.

A single VoIP call typically needs 85–100 Kbps in both directions. If you’re handling concurrent calls, multiply that number by the number of users. This gives you a rough idea of your VoIP bandwidth requirements.

The more calls you make at once, the more bandwidth consumption increases—especially if other online activities like video meetings or text messaging are running in the background.

2. Latency: Delay Between Packet Delivery

Latency refers to the delay between when a voice packet is sent and when it’s received. It’s measured in milliseconds (ms). For smooth VoIP calling, latency should stay below 150 ms.

If your internet service provider can’t keep latency low, you’ll hear delays, talk-over issues, or missed parts of the conversation. This seriously affects your customer experience, especially during support or sales calls.

3. Jitter: Inconsistent Packet Timing

Jitter measures the variation in packet arrival time. Ideally, all data packets in a VoIP call should arrive in the correct order and at steady intervals. When they don’t, you get distortion, gaps, or robotic sound.

High jitter usually comes from unstable internet connections, overloaded VoIP networks, or improper router settings. Keeping jitter under 30 ms ensures better voice quality.

4. Packet Loss: Missing Data Packets

Packet loss means some voice packets don’t reach their destination at all. Even a 1% packet loss can create noticeable quality issues during phone calls, like dropouts, silences, or audio clipping.

This happens when your bandwidth speed is too low, or your phone system competes with too much other traffic, like file downloads, video calls, or cloud PBX syncing.

These tools help you ensure your business’s internet meets the minimum requirements for stable VoIP.

Understanding how VoIP bandwidth is measured gives you control over your call data, protects your customer stories, and helps maintain reliable business communication, whether you’re in a home office, a real estate firm, or a high-volume call center.

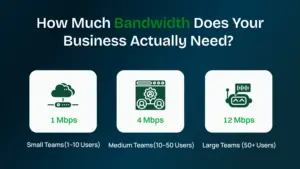

How Much Bandwidth Does Your Business Actually Need?

Many businesses guess their VoIP bandwidth requirements and then wonder why their call quality tanks. From my experience, guessing doesn’t work. You need actual numbers based on team size, call volume, and how your VoIP system operates alongside other online activities.

Let’s walk through what different business sizes really need and why.

First, Know Your Baseline Requirements.

Each VoIP calling session typically uses 85–100 Kbps per direction. That’s about 200 Kbps per call for safe calculations, accounting for overhead and minor packet loss.

But don’t stop there. Add up your total concurrent calls, then factor in usage like video meetings, text messaging, file sharing, and app syncing. This gives you a more accurate picture of your total bandwidth consumption.

Once you’ve got the estimate, compare it with your actual internet speed using a trusted speed test.

For Small Teams (1–10 Users)

Let’s say 5 users make phone calls at the same time.

VoIP bandwidth needed: 5 x 200 Kbps = 1 Mbps (up/down)

Recommended: At least 5–10 Mbps upload and download speeds.

That leaves room for cloud PBX, unified communications, and basic online activities without stressing your phone system.

If you’re running from a home office or shared space, upgrade to business internet to avoid throttling or inconsistent VoIP network behavior.

For Medium Teams (10–50 Users)

Suppose 20 people might be on VoIP phones during peak hours.

VoIP bandwidth needed: 20 x 200 Kbps = 4 Mbps in both directions.

Recommended: At least 25–50 Mbps total bandwidth with solid upload speeds.

At this level, you’re probably using hosted VoIP, integrated CRMs, and tools like Slack or Zoom. Without enough bandwidth speed, your team will see jitter, latency, or worse—disrupted client calls.

This is where bandwidth calculation matters. Don’t share the same line with streaming devices or data-heavy apps unless your internet connection is strong enough.

For Large Teams (50+ Users)

A 100-agent call center might see 60 concurrent calls.

VoIP bandwidth needed: 60 x 200 Kbps = 12 Mbps minimum

Recommended: At least 100+ Mbps dedicated business line with high reliability.

At this scale, add voice analytics, AI voice routing, backups, and live video calls. Now your real bandwidth requirements climb significantly. Also, monitor jitter, packet loss, and data usage constantly.

Use enterprise-level routers with Quality of Service (QoS). Prioritize call data over general traffic. Work with your internet service provider to secure guaranteed uptime and SLAs.



Final Advice: Don’t Just Buy “Fast Internet”



“Fast” doesn’t mean reliable. You need consistency, low latency, and support for sudden traffic spikes.

Whether you’re a real estate firm with 5 agents or a 100-seat contact center, your success with VoIP phones depends on meeting real-world bandwidth requirements, not averages.

Talk to your VoIP provider, use VoIP bandwidth calculators, and review your internet plan regularly. The right setup saves you from dropped calls, missed leads, and a bad customer experience.

Factors That Affect VoIP Bandwidth Requirements

Not every business needs the same amount of bandwidth. Based on my experience setting up dozens of VoIP systems, here are the four key things that directly influence how much bandwidth you’ll actually need.

1. Number of Concurrent Calls

The most obvious factor is the number of people making simultaneous VoIP calls.

Each active call consumes bandwidth. For example, if you’re using a G.711 codec, one call uses about 100 Kbps both ways. So, 10 active calls will need around 2 Mbps of dedicated bandwidth.

If your VoIP system struggles when multiple users are on the phone, it’s often because you didn’t account for concurrent usage. Always plan for peak call volume—not average.

2. Codec Used

Codecs determine how audio is compressed and transmitted. And yes, they directly impact your VoIP bandwidth usage.

For example, G.729 uses less bandwidth (~32 Kbps), but sacrifices call quality. On the other hand, G.711 gives crystal-clear audio but uses more data. Choosing a codec is a balance between bandwidth availability and voice clarity.

If you want high-quality calls and have the internet to support it, go with G.711. If you’re in a tight network, G.729 may be the better call.

3. Network Congestion

Too much traffic on your network? That will tank your call quality fast.

VoIP phones are sensitive to delays. If your network is already packed with file downloads, video conferencing, or streaming, VoIP traffic will suffer. This leads to jitter, latency, and packet loss, which cause voice delays, choppy sound, or dropped calls.

Using Quality of Service (QoS) settings on your router can help prioritize VoIP traffic and keep your calls clear even when other devices are active.

4. Other Internet Activities

Don’t ignore background internet usage. Uploading files, syncing backups, streaming video, all of it eats bandwidth.

In one setup I worked on, a team was losing calls during client meetings. Turns out, their automatic cloud backups were starting during peak business hours. Once we moved the backup to after-hours, call quality stabilized.

Monitor non-VoIP traffic and separate it if possible. For critical operations, dedicate a portion of your internet connection just to your VoIP phones.

If your VoIP system isn’t performing well, check these four factors first. They play an important role in deciding how much VoIP bandwidth you really need.

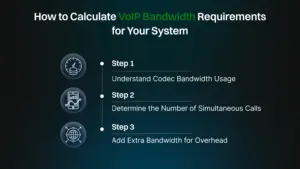

How to Calculate VoIP Bandwidth Requirements for Your System

Getting your VoIP system running smoothly starts with knowing how much bandwidth it needs. Here’s how I calculate it for clients based on real setups:

Step 1: Understand Codec Bandwidth Usage

Every VoIP call gets compressed using a codec, which affects how much bandwidth each call uses. The two most common codecs:

• G.711 – Offers uncompressed audio with excellent quality. Uses around 87–100 Kbps per call (including overhead).
• G.729 – Compresses audio to save space. Needs only 31–40 Kbps per call.

In my experience, G.711 is best for internal teams who want clarity, while G.729 works for larger call centers that need to conserve network bandwidth.

Now that you know how much each call consumes, let’s move to the bigger picture.

Step 2: Determine the Number of Simultaneous Calls

Multiply the bandwidth per call by the number of concurrent calls. For example:

• 10 calls using G.711 → 10 × 100 Kbps = 1,000 Kbps (1 Mbps)
• 25 calls using G.729 → 25 × 40 Kbps = 1,000 Kbps (1 Mbps)

Even though the total bandwidth is the same in this case, the codec choice matters for call quality and jitter.

This number alone isn’t enough. Here’s why…

Step 3: Add Extra Bandwidth for Overhead

VoIP isn’t just voicemail. You’ve got network overhead, packet headers, jitter buffers, and other hidden pieces that eat up capacity. I always recommend adding 25–30% extra bandwidth as headroom.

So, if your total call traffic needs 1 Mbps, plan for 1.3 Mbps to avoid latency, packet loss, or distorted calls, especially when your internet connection is shared with email, downloads, or video conferencing.

What Happens If you don’t meet VoIP Bandwidth Needs?

If your VoIP system doesn’t get the bandwidth it needs, things go downhill fast.

First, call quality takes a hit. You’ll hear choppy audio, long lags, or voices that sound like robots. In some cases, calls will drop altogether, especially during network congestion or when other internet activity competes for the same line.

That’s just the technical part. The bigger concern? Your business reputation. Imagine a client calling support and getting poor audio or dropped calls—that’s trust lost instantly. Sales teams? If your pitch keeps breaking up, you can kiss the deal goodbye.

In short, VoIP bandwidth needs aren’t optional; they’re the backbone of reliable communication. And when that backbone breaks, it’s your team, clients, and brand that feel it.

Top Tips to Optimize VoIP Bandwidth for Better Call Quality

If your VoIP system sounds choppy or inconsistent, chances are you’re not managing your bandwidth right. Here’s how I handle it in real-world deployments:

1. Use the Right Codec

Not all codecs are built the same. For example, G.729 uses far less bandwidth than G.711, but may slightly reduce audio quality. On the flip side, G.711 offers crystal-clear audio but demands more from your network.

👉 Always balance codec choice based on call quality needs and available internet bandwidth.

2. Prioritize VoIP Traffic with QoS

Set up Quality of Service (QoS) rules in your router. This ensures your VoIP traffic gets the highest priority, reducing jitter, latency, and packet loss—the usual suspects behind bad call quality.

👉 Enabling QoS, especially in shared office spaces where other internet activities might hog your connection.

3. Limit Background Usage During Calls

If your team is uploading files to Google Drive while on a call, don’t expect smooth audio. Heavy data usage competes with your VoIP bandwidth.

👉 Schedule software updates outside work hours, and educate staff on minimizing distractions like video streaming during meetings.

4. Upgrade Your Internet Plan If Needed

Sometimes you’re just outgrowing your plan. If you’re scaling your business and adding more agents, your old bandwidth won’t cut it.

👉 Always check if the line is active and offers consistent speeds using VoIP tools. Then upgrade to match the number of concurrent calls and future growth.

Even the most advanced VoIP phones and automated switching systems will fail without enough bandwidth. These small steps ensure your VoIP system remains reliable, your call log stays clean, and customers hear you loud and clear.

Common Mistakes That Impact VoIP Bandwidth (And How to Avoid Them)

After setting up VoIP systems, many businesses still struggle with poor call quality. Why? Because they overlook basic bandwidth fundamentals. In my experience, these aren’t technical failures—they’re planning mistakes. Here are the top issues I’ve seen (and fixed).

1. Misconfiguring Your Router or Firewall

Too many admins forget that VoIP phones depend on precise port forwarding, NAT traversal, and SIP traffic rules. If your router blocks or delays voice packets, expect dropped calls and jitter.

How to fix it:
Double-check your firewall for SIP ALG settings. Disable it unless your provider requires it. Set traffic-shaping rules to favor VoIP packets.

2. Ignoring QoS (Quality of Service)

Without QoS, your network treats all traffic equally. That means file downloads or video streaming can choke voice calls. This mistake alone ruins real-time conversations and inflates your jitter.

How to fix it:
Prioritize RTP and SIP traffic using QoS rules on your router. Tag VoIP softphone devices or VLANs if you manage a larger system.

3. Underestimating Call Volume

If your bandwidth plan doesn’t match your concurrent calls, even the best equipment won’t help. I’ve seen teams of 30 run on a plan fit for 5 users—it never ends well.

How to fix it:
Use a bandwidth calculator based on your VoIP codec (e.g., G.711 or G.729) and simultaneous call needs. Always add headroom for network overhead.

4. Overloading the Network with Other Activities

Heavy file uploads, streaming, or security cam feeds silently eat into your available bandwidth. The result? Poor VoIP call quality, lag, or no dial tone at all.

How to fix it:
Segment your network. Assign VoIP to a dedicated VLAN or separate SSID. Limit backup or sync tasks during business hours.

5. Using Low-Quality Equipment or Wi-Fi

Poor routers, outdated firmware, or unstable Wi-Fi often break VoIP audio. Just because the line is connected doesn’t mean it’s active and ready for real-time voice.

How to fix it:
Invest in enterprise-grade routers, and avoid placing VoIP phones on congested Wi-Fi. Use wired Ethernet where possible.

How to Test Your VoIP Bandwidth Right Now

If you’re dealing with dropped calls or glitchy audio, it’s time to test whether your VoIP system has enough bandwidth. I’ve done this multiple times during audits, and here’s the step-by-step guide I use.

1. Run a Speed Test (Start Here)

Go to https://www.speedtest.net
Click “Go” and wait for the results.

Write down:

• Download speed (in Mbps)
• Upload speed (in Mbps)
• Ping (in ms)
• Jitter (in ms)

You want low jitter, low ping, and stable upload/download speeds.

2. Compare Against Your VoIP Needs

Now match it to your usage:

Team Size	Recommended Upload Speed
1–5 users	At least 0.5 Mbps per call
5–20 users	At least 10 Mbps upload
20+ users	50 Mbps+ depending on codec and call volume

3. Know What the Results Mean

• High packet loss? Your line is not stable enough.
• High latency? Users might hear delays.
• High jitter? Expect robotic voices or gaps in calls.

If any of these values are off, your VoIP phone dial tones will suffer, even if your phone line is active.

🧩 Final Thoughts: Your VoIP Call Quality Depends on Bandwidth

If you’re struggling with dropped calls, lag, or muffled audio, chances are your VoIP bandwidth setup needs work. But the good news? You don’t need a full IT overhaul — just smarter optimization.

Focus on things like codec selection, prioritizing VoIP traffic, and keeping tabs on jitter and latency. These small tweaks can make your VoIP system feel like an enterprise-grade solution, even on a modest connection.

Your VoIP system’s performance starts with how well your internet connection is optimized. Now you know what to check, what to fix, and what to avoid.

FAQs

How much bandwidth does a single VoIP call use?

A typical VoIP call using the G.711 codec consumes about 100 Kbps both ways. Using G.729 reduces this to around 30–40 Kbps. Keep this in mind when calculating total bandwidth needs for concurrent calls.

What causes poor VoIP call quality even with high internet speed?

High speeds don’t guarantee good VoIP performance. Issues like packet loss, jitter, and latency caused by network congestion or a lack of QoS settings can still degrade call quality.

How can I test my VoIP bandwidth?

Use online tools like Speedtest.net to measure your upload speed, download speed, and ping. For detailed VoIP-specific tests, tools like 8×8 Network Utility measure jitter and packet loss—critical for clear calls.

Why is codec choice important for VoIP bandwidth?

Different voice codecs compress audio differently. Choosing between G.711 and G.729 affects your bandwidth consumption and audio quality. Select a codec based on your network capacity and quality requirements.

How does network congestion affect VoIP calls?

When multiple applications use the same internet connection heavily, VoIP traffic competes for bandwidth. Without QoS, this leads to jitter, delayed packets, and dropped calls, harming voice call stability.
