Resolving Dial Tone Problems in VoIP Systems

You pick up the phone… and there’s silence. No beep, no tone, just dead air.

This happens more often than most teams expect. Whether it’s in a busy office or a small business setup, VoIP systems can lose dial tone for several reasons, such as bad wiring, dropped SIP registration, or network issues like jitter or latency.

The good news? These problems follow patterns. Once the right checks are done step by step, it becomes much easier to find the cause and fix it fast.

This guide shows exactly how to troubleshoot dial tone problems in VoIP systems. From simple cable checks to deeper configuration fixes, every step is practical, tested, and easy to follow.

You’ll also see how to prevent these issues for good with better hardware, network setup, and monitoring.

Let’s start with the basics and build on them.

🔑Key Highlights

• A dial tone is the steady sound you hear when picking up a landline phone.
• Hardware or wiring issues, like a faulty Ethernet cable or a loose port.
• Your VoIP phone needs to register with your SIP trunking or VoIP provider’s server.
• A failed power-up cycle or frozen firmware can stop everything.
• Inspect your RJ-45 cable for wear, cracks, or improper seating.

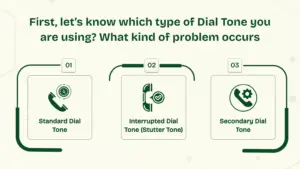

First, let’s find out which type of Dial Tone you are using. What kind of problem occurs

A dial tone is the steady sound you hear when picking up a landline phone. It signals that the system is ready to place a call and stops once numbers are dialed.

In VoIP systems, dial tones aren’t all the same. Each one tells you something about your setup. If you’re running into problems with call connections, start by identifying the tone you hear.

Let’s break down the tones and what might be going wrong.

1. Standard Dial Tone

This is the fundamental tone, a steady sound that means the phone is ready to dial. You usually hear this when the device is registered and idle.

Problems that can occur:

• SIP registration failure caused by incorrect login, expired credentials, or unreachable servers.
• Hardware or wiring issues, like a faulty Ethernet cable or a loose port.
• Power or boot errors in VoIP phones delay device readiness or freeze the startup.

If your standard tone is missing or delayed, the problem may be buried in the connection or device status.

2. Interrupted Dial Tone (Stutter Tone)

This one’s choppy, like a series of quick beeps. It usually indicates there’s a new voicemail or message notification in your system.

Problems that can occur:

• The voicemail box is misconfigured or completely full, causing false alerts.
• Firmware bugs are preventing the phone from clearing message indicators after messages are checked.
• PBX configuration errors are sending incorrect tones even when no messages exist.

If you’re hearing a stutter tone with no voicemails, your VoIP system could be sending misleading signals.

3. Secondary Dial Tone

You hear this after dialing a prefix like “9” for an outside line. It tells the system you’re about to enter the full number.

Problems that can occur:

• Dial plan issues where the prefix is detected, but the system doesn’t know what to do next.
• Codec mismatches or audio path delays are causing the system to stall between tones.
• Call routing glitches that block additional digit input or break the outbound sequence.

When secondary tones fail, it’s often tied to how your PBX handles outbound rules or digit collection.

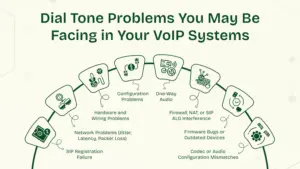

Dial Tone Problems You May Be Facing in Your VoIP Systems

If you’re struggling with VoIP dial tone issues, you’re not alone. Most problems in business VoIP systems are often caused by a handful of issues, such as misconfigured IP phones, unstable internet, or blocked ports.

Here’s a breakdown of the most common VoIP dial tone problems and how to fix them with confidence.

1. SIP Registration Failure

Your VoIP phone needs to register with your SIP trunking or VoIP provider’s server. If it fails, you’ll get no dial tone at all, calls won’t go out or come in.

What to check:

• Are your SIP username and password entered correctly?
• Is the SIP domain/registrar IP reachable from your network?
• Has the SIP account been locked after too many failed attempts?

This usually affects both ATA and IP phones. Log in to your phone system or device interface and verify the credentials provided by your VoIP provider. Double-check the IP address of the SIP server, and ensure no typos or port mismatches.

Pro tip: Install a SIP softphone (e.g., Zoiper) on your PC and test the same SIP login. If it registers, the issue is likely with your VoIP phone, router, or phone configuration.

Don’t move forward until SIP registration says “OK” or “Registered.” This is essential for calls to be routed.

2. Network Problems (Jitter, Latency, Packet Loss)

Your VoIP call quality depends entirely on a stable network. If your internet has high jitter, latency, or packet loss, you’ll hear distorted audio or no dial tone at all.

Signs:

• Delay before hearing a dial tone
• Dropped calls during dialing
• Choppy, robotic, or missing tones

How to fix:

• Run a VoIP speed test or use PingPlotter to check jitter and packet flow
• Switch from Wi-Fi to wired Ethernet.
• Enable QoS (Quality of Service) on your router to prioritize VoIP traffic.c

These steps directly impact your business phone reliability. For business VoIP, always separate VoIP traffic from general browsing to avoid congestion.

3. Hardware and Wiring Problems

Physical problems with cordless phones, Ethernet cables, or switches can block the dial tone even if the network and SIP setup are perfect.

What to inspect:

• Is the RJ-45 cable loose or frayed?
• Is the PoE injector or power adapter working?
• Are your switch ports delivering power?

Quick fix: Swap the suspected cable or phone with one that’s already working. If using Power over Ethernet, try power cycling the phone or switch ports. Always isolate hardware before diving into software configs.

These issues often affect ATA or IP phones used in hybrid systems.

4. Configuration Problems

Even a single misconfigured field in your VoIP phone’s settings can completely block SIP communication.

Key settings to verify:

• SIP proxy or registrar server IP
• SIP username and password
• Transport protocol (UDP, TCP, TLS)

If the phone isn’t configured with the correct values from your VoIP provider, it won’t register and won’t play a dial tone.

Helpful tip: Reset the phone to factory defaults. Then manually enter the correct SIP details or re-provision it through your PBX or cloud phone system.

Bad configs often show no immediate errors, so a full reset is often the fastest route to success.

5. One-Way Audio

You may hear a dial tone, but the other party hears nothing, vice versa. This is a classic audio path issue caused by routing or NAT misconfigurations.

Common causes:

• NAT is not forwarding media ports correctly
• RTP ports are blocked by a firewall
• Audio codecs do not match between devices.

Try this:

• Use STUN or TURN servers if you’re behind NAT
• Enable symmetric RTP (on phone or PBX)
• Allow UDP ports 10000–20000 on your firewall (these carry audio)

This fix not only restores the dial tone but also improves your overall call quality.

6. Firewall, NAT, or SIP ALG Interference

Firewalls and SIP ALG (Application Layer Gateway) can silently block or rewrite SIP packets, causing failures that are hard to detect.

Warning signs:

• VoIP calls don’t connect
• Dial tone is delayed or doesn’t play.
• Calls drop after a few seconds.s

Fix this:

• Disable SIP ALG on your router (check router admin panel)
• Manually forward SIP (port 5060) and RTP (10000–20000) ports
• Use a business-class router designed for VoIP phones

Without fixing NAT traversal or ALG rewriting, even correctly configured phones may appear offline or unresponsive.

7. Firmware Bugs or Outdated Devices

Old firmware can introduce strange problems like frozen screens, no tones, or phones rebooting randomly.

Steps to take:

• Check for the latest firmware version on your VoIP phone’s vendor site
• Schedule updates during off-hours to avoid user disruption
• Read update logs, many contain VoIP-specific fixes (especially audio-related)

Even top-tier IP phones need regular updates to keep up with VoIP provider platform changes and codec compatibility.

8. Codec or Audio Configuration Mismatches

All devices in your VoIP system must agree on how to encode and decode voice. If the codec mismatch is too wide, you’ll hear nothing, even if the line is technically active.

Example issue: Your VoIP phone uses G.722 by default, but your PBX or trunk only supports G.711.

What to do:

• Log in to the phone or PBX interface
• Set G.711 as the preferred codec (universally supported)
• Disable unused codecs to avoid negotiation errors

Fixing this removes silent calls, codec negotiation failures, and helps speed up call setup.

9. Power or Boot Errors in VoIP Phones

No dial tone? Your phone might not even be booting fully. A failed power-up cycle or frozen firmware can stop everything.

What to look for:

• No display or a frozen logo screen
• Phone lights are blinking in an error pattern
• PoE is not delivering enough power.

Fix:

• Unplug the phone and power cycle it
• Try a direct wall adapter instead of PoE.
• Use a different switch port or test the switch itself.

These issues can affect any business phone model, even high-end units, especially after power cuts or firmware updates.

Step-by-Step Fixes for Dial Tone in a VoIP System

No dial tone? Don’t guess, follow this proven process. Whether you’re using IP phones, ATA adapters, or a full business VoIP setup, these are the exact steps that resolve 90% of dial tone issues. I’ve applied these in real-world deployments for small businesses and enterprise sites, and they work.

Let’s start with the physical layer and move deeper, one level at a time.

A. Start With the Basics: Physical & Device-Level Checks

Step 1: Check All Cables and Power Connections

Loose Ethernet cables or faulty power adapters can immediately cut off your dial tone.

• Inspect your RJ-45 cable for wear, cracks, or improper seating.
• If you’re using Power over Ethernet (PoE), verify the switch port is live. No light = no power.
• For ATA or IP phones, confirm that the adapter and wall socket are working properly.

If the device isn’t getting power, nothing else will work. Always start here.

Step 2: Confirm Status Lights on Your Device

Check the status lights on the VoIP phone, cordless phones, or adapter.

• The power light should be solid, not blinking.
• Network light should be active.
• No error codes or screen freeze.

If the lights are off, blinking in a pattern, or stuck on a logo screen, you’re likely dealing with a boot failure or firmware crash.

Step 3: Restart the VoIP Phone or ATA

Do a full power cycle.

• Unplug the device for 10–15 seconds, then reconnect.
• This clears any temporary glitches in memory and forces a clean boot. For ATA or IP phones, it also resets the connection to your VoIP provider.
• Still no dial tone? Move to the next step.

Step 4: Try Another Phone, Port, or Handset

Swap your phone with another known-working unit. Try a different port on your switch or router. This quickly isolates the problem: is it the device or the network?

You’d be surprised how often a bad port or broken jack causes the whole system to fail.

Once you’ve ruled out local device issues, it’s time to check the network.

B. Check Your Network and Internet Connection

Step 1: Make Sure the Internet Is Working

No internet = no SIP trunking, no calls routed, no dial tone.

• Use your PC or mobile to load a website.
• If the internet is down, fix that first. Your VoIP system depends on it.

If everything else seems fine but calls still fail, your firewall or ISP may be blocking SIP traffic.

Step 2: Restart Your Modem and Router

Unplug your modem and router for 30 seconds. Rebooting resets the IP address, clears buffer overloads, and refreshes stale connections. Once everything’s back online, wait for the VoIP phones to re-register.

This step alone solves more problems than most people think.

Step 3: Look for Packet Loss, Jitter, or Latency

Run a VoIP quality test (use PingPlotter or VoIP-specific tools).

• Packet loss above 1%?
• Jitter above 30ms?
•  Latency over 150ms?

Any of these will affect call quality and delay or kill your dial tone.

Set QoS (Quality of Service) on your router to prioritize VoIP calls.

Step 4: Test on a Different Network (e.g., Mobile Hotspot)

Connect the phone to a mobile hotspot or a different Wi-Fi network.

• If it works, the issue is the local firewall, NAT, or ISP block.
• If it still fails, your VoIP provider or device config may be the problem.

This is the fastest way to rule out external interference.

C. Investigate SIP and Phone Configuration

Step 1: Check SIP Registration Status

Log in to your PBX dashboard or phone web interface. If it says “Unregistered”, your phone hasn’t connected to the SIP server, and there is no dial tone.

Don’t move forward until SIP is showing “Registered”.

Step 2: Re-enter SIP Details if Needed

Check your SIP username, password, and server address. Even one wrong character will break the connection.

Reach out to your VoIP provider if you’re unsure. A typo here will completely stop calls from routing.

Step 3: Sync Time Settings and DNS

Incorrect time zones, NTP issues, or DNS problems cause failed SIP registration.

• Use 8.8.8.8 (Google DNS)
• Set the correct time zone in the phone settings
• Enable automatic NTP (Network Time Protocol) sync.

Time mismatches confuse encryption keys and can silently block traffic.

Step 4: Enable Local Dial Tone Generation

Some VoIP phones or ATA devices require local tone generation. Without this setting enabled, the phone may appear silent even if it’s working fine.

Look in the web admin interface > Audio or Regional Settings.

D. Go Deeper If the Basics Don’t Work

Step 1: Review Call Logs and SIP Traces

Your phone system or hosted PBX dashboard will show registration attempts, errors, and SIP logs. Look for NAT errors, blocked codecs, or failed handshakes.

This gives you clear data to act on.

Step 2: Reset the Phone and Re-Provision

Factory reset the phone, then re-add it using your VoIP provider’s auto-provisioning guide or manual settings. Ensure the phone is fully configured with the correct SIP trunking details, codecs, and transport protocols.

This clears out bad configs that a reboot won’t fix.

Step 3: Escalate With Details

If nothing works, send your provider a full summary:

• Device model and firmware
• SIP logs
• Network test results
• Steps you’ve already tried

Support teams move faster when they don’t have to start from scratch.

Pro Tip: Watch Out for These Easy-to-Miss Causes(Box)

• SIP ALG enabled on your router (disable it)
• Firewall blocking SIP or RTP ports (5060 and 10000–20000)
• Firmware is out of date on your IP phones.
• Codec mismatch (use G.711 to stay safe)
• Double NAT setup with no STUN/TURN servers

These are silent killers; they don’t throw errors, they just stop audio.

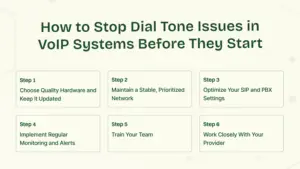

How to Stop Dial Tone Issues in VoIP Systems Before They Start

If you want to avoid hearing silence when you pick up your VoIP phone, prevention is key. These steps help you get ahead of issues before they interrupt your team or customers.

Follow this checklist to build a solid VoIP system from the ground up.

1. Choose Quality Hardware and Keep It Updated

Start with reliable IP phones, ATA adapters, and routers that are built for VoIP traffic. Avoid using outdated or generic devices that fail under basic load.

Always check for firmware updates on your devices. Old firmware causes bugs, freezes, or blocked VoIP calls. Schedule regular maintenance to apply updates during off-hours.

A strong business phone setup starts with dependable gear that won’t fail silently.

2. Maintain a Stable, Prioritized Network

A weak network is the root of most dropped calls, choppy audio, or no dial tone. Use wired Ethernet, not Wi-Fi, for every VoIP phone or adapter.

Set Quality of Service (QoS) in your router to prioritize SIP trunking and voice traffic. Keep bandwidth-heavy apps (like streaming or large downloads) on a separate VLAN or subnet.

Your voice traffic must stay clean and uninterrupted if you want reliable call quality.

3. Optimize Your SIP and PBX Settings

Make sure every phone is configured correctly. That includes entering accurate SIP credentials, selecting supported codecs like G.711, and syncing time/NTP settings.

Use your PBX dashboard to review SIP registration, NAT settings, and IP address mappings. If phones frequently unregister, check for NAT or firewall interference.

Getting SIP right prevents 90% of dial tone issues from occurring before they begin.

4. Implement Regular Monitoring and Alerts

Use your VoIP provider’s monitoring tools or install third-party systems to keep an eye on call quality, jitter, and packet loss.

Set alerts for when devices go offline or when registration fails. Many issues start small; catching them early prevents bigger disruptions down the line.

It’s better to be notified when something starts failing, not after users complain.

5. Train Your Team

Don’t leave troubleshooting to one person. Make sure everyone in your office knows how to power cycle a phone, check your internet, and recognize signs of VoIP problems.

A quick response to minor issues, such as a flashing light or a phone stuck on boot, can save hours of downtime. Keep a laminated cheat sheet or simple SOPs near the phones.

When your team understands the system, fewer calls get stuck and more problems get solved fast.

6. Work Closely With Your Provider

If you’re using a business VoIP solution, stay in touch with your VoIP provider. Know who to contact and what information they need (like SIP logs, device models, or timestamps).

Many providers offer real-time support tools, diagnostics, or auto-provisioning templates to help you scale quickly. Use them. Don’t wait for a failure to engage support.

A responsive provider helps you stay ahead of failures and chase them.

Want Permanent Dial Tone Stability? Here’s How

Getting your VoIP system to deliver a clean, reliable dial tone isn’t a one-time fix. It’s about building long-term stability into every part of your setup, from the cables under your desk to the cloud PBX you’re connected to. Here’s how to make that stability permanent.

I. Use Proven VoIP Phones and Quality Power Sources

Start with tested, business-class VoIP phones. Avoid no-name devices that fail after a few months. Choose models that support SIP trunking, remote provisioning, and PoE.

If you’re using ATA or IP phone setups, make sure power adapters match the required voltage. For PoE devices, check that your switch delivers consistent power. Weak or unstable power causes random reboots and no dial tone symptoms.

Pro tip: If phones randomly restart or freeze, test with a dedicated power adapter before replacing the hardware.

II. Build a Dedicated Voice Network

For permanent call quality, your voice traffic must not compete with streaming, downloads, or camera feeds. Create a dedicated VLAN or separate SSID for your VoIP phones.

Set up Quality of Service (QoS) rules that prioritize SIP and RTP packets. And yes, check your internet connection regularly. Use wired Ethernet. Never rely on Wi-Fi for desk phones.

Stable networks prevent jitter, dropped calls, and broken tones.

III. Keep Firmware and Configuration Synced

Phones and PBX systems must speak the same language. That means codecs, NAT handling, and security protocols should match. Use G.711 as your default codec unless bandwidth is a concern.

Update your phone system firmware on a schedule; don’t wait for a bug to appear. Always sync DNS and time settings. Use NTP servers that won’t break during power cycles.

A well-configured phone stays registered, keeps its IP address, and sends tones immediately after boot.

IV. Monitor What Matters Every Day

Use your VoIP provider’s admin portal to track calls routed, registration uptime, and error logs. Set up alerts for unregistered devices, high jitter, or call failures.

Even basic tools like PingPlotter or VoIPmonitor can help spot early signs of degradation. Look for consistent patterns: Is the dial tone delayed at the same time daily? That’s a signal.

You don’t need to watch everything; the metrics that affect voice flow.

V. Align Your Team and Provider

Your internal team and external business VoIP provider must stay on the same page. Train your staff on basic checks: rebooting, identifying status lights, and confirming phone system registration.

On the provider side, request SIP trace access or real-time diagnostics. Know who to contact when something breaks. The more detail you share, logs, timestamps, the faster they can help.

Fast response comes from clear documentation and strong relationships, not just tickets.

What’s Next for Dial Tone in Modern VoIP?

Dial tone may seem old-school, but in VoIP systems, it’s the heartbeat of availability. As technology evolves, the tone itself stays, but how it’s delivered, managed, and optimized is changing fast.

Here’s where it’s heading and how to prepare your system.

1. Cloud-Based VoIP Is Replacing Traditional Desk Phones

More businesses are moving away from fixed desk phones. Cloud-based softphones now handle most VoIP calls, especially for hybrid teams. Apps work across laptops and mobiles, giving better flexibility than old cordless phones or desk setups.

Action: Start transitioning to cloud softphones if you still rely on physical ATA or IP phones. Test key features like voicemail, dial tone, and call transfers with your VoIP provider before rolling out company-wide.

2. AI Monitoring Will Detect Issues Instantly

You no longer have to wait for users to complain about call quality or a missing dial tone. AI-based monitors now watch for jitter, latency, failed registrations, or dropped calls and alert you in real-time.

Action: Set up monitoring in your business VoIP system. Get alerts for failed SIP trunking, unregistered phones, and poor VoIP call metrics. Fix problems before they cause downtime.

3. Zero-Touch Provisioning Is Becoming the Standard

New VoIP phones don’t need manual setup anymore. With zero-touch provisioning, they auto-download settings once connected to the network. That includes SIP credentials, IP addresses, and phone system rules.

Action: Replace unsupported phones. Use models that support zero-touch setup with your VoIP provider or hosted PBX.

4. Stronger Security Will Be Built-In

VoIP attacks are on the rise. Systems are now expected to use encrypted SIP trunking, SRTP, TLS, and strong authentication. Open ports and unpatched firmware are no longer acceptable.

Action: Lock down your phone system. Update firmware. Block unused ports. And only allow IP ranges that your calls are routed to.

5. Real-Time Analytics Will Guide Smarter Decisions

Admins now have tools to view performance, live call quality, registration failures, or codec mismatches. This helps pinpoint issues faster than combing through logs.

Action: Use dashboards built into your business phone system. Monitor common issues like “fixing no dial tone,” network spikes, or codec mismatches across users.

6. Hyper-Personalization Will Be Built Into the UI

Modern VoIP systems give users more control. Each employee can personalize ringtone behavior, call forwarding, voicemail, and even interface preferences.

Action: Enable user-level access. Let your teams manage their VoIP phones and adjust preferences for their roles, support, or remote work.

7. Autonomous AI Agents Will Handle Frontline Tasks

Instead of ringing agents directly, many business VoIP systems will first route calls to AI. These agents answer FAQs, book appointments, or filter spam before the call reaches a human.

Action: Try AI-powered routing for everyday tasks. Start small with after-hours greetings or appointment reminders.

8. Simulated Dial Tone Will Prevent Panic

Some modern VoIP phones now generate a local dial tone even when disconnected from SIP. This prevents the “dead air” experience and keeps users calm while network issues are resolved.

Action: Enable this in your settings if your device supports it. It’s a minor UX upgrade that reduces needless support tickets.

Conclusion

If your VoIP system keeps running into dial tone issues, don’t wait for users to complain. I’ve seen this firsthand. Most problems can be solved before they ever disrupt a call. Start by checking the type of tone you hear.

Then follow each layer: physical setup, SIP registration, network quality, and firewall rules. Each part plays a role. Once your foundation is solid, move forward. Use firmware updates, set correct codecs like G.711, and enable real-time monitoring.

These steps prevent silent phones and dropped calls. If you’re serious about business communication, build your VoIP system the right way and keep it that way.

FAQS

Can network issues affect my dial tone?

Yes. High jitter, packet loss, or poor internet can delay or kill the dial tone. Use wired Ethernet, set QoS rules, and monitor your internet quality to fix this.

Do outdated VoIP phones cause dial tone issues?

Absolutely. Older phones with outdated firmware can freeze, reboot randomly, or fail to play dial tones. Always keep your devices updated with the latest vendor firmware.

Can firewalls block my VoIP dial tone?

Yes. Firewalls and SIP ALG settings can silently block SIP or RTP packets. Disable SIP ALG and forward ports 5060 (SIP) and 10000–20000 (RTP) to allow voice traffic.

Why does my phone have power but no tone or display?

This often points to a boot failure or firmware crash. Power cycle the device, try a different PoE port or power adapter, and check for frozen screens or blinking error lights.

Is SIP ALG bad for VoIP phones?

Yes. SIP ALG often rewrites packets, breaking SIP communication. Disable it in your router settings to allow clean SIP and RTP flows.

How do I check if SIP is registered on my VoIP phone?

Log in to the phone or PBX web dashboard. If it shows “Unregistered,” the phone isn’t connected to the server and won’t play a dial tone.

How do I reset my VoIP phone to factory settings?

Find the reset option in the phone’s menu or press and hold the designated reset button. Then reconfigure SIP settings from scratch.
