Ever wonder how your voice travels across the world in an instant? You likely use VoIP, or Voice over Internet Protocol, every day. This technology powers modern business communications. It offers far more than just cost savings.

It provides unmatched flexibility. It unlocks advanced features for businesses of any size. This guide demystifies the entire process. We will explore how does VoIP work and turns your voice into data.

We will see how it sends that data across the internet. We will learn how it delivers clear conversations. You will gain the clarity to embrace the future of communication.

🔑Key Highlights
  • Voice over Internet Protocol (VoIP) replaces traditional phone systems by converting your voice into digital data. It sends these data packets over the internet instead of using inefficient copper wires.
  • The VoIP technology works by converting analog audio signals to data, using the Session Initiation Protocol (SIP) to establish a connection.
  • A complete VoIP phone system requires an endpoint like an IP Phone or mobile phone / VoIP app, a stable internet connection, and a PBX. A cloud phone system acts as the central brain managing all call routing.
  • Successful implementation demands attention to VoIP security, compliance with Emergency Calling (E911) regulations, and a ready network.
  • Business VoIP provides significant cost savings, superior scalability, and advanced calling features impossible on a landline phone.

VoIP vs. Landline Technology

To understand VoIP, we must first look at the old way. This context reveals why IP Telephony is a monumental leap forward. It is not just a new phone. It is a new philosophy for connecting people. This marks a clear line in the sand for VoIP vs. Landline technology.

Traditional phone systems rely on a century-old infrastructure. This is the Public Switched Telephone Network (PSTN). It uses physical copper wires to create a dedicated, temporary connection for each call.

This method, known as circuit switching, opens a continuous line just for your conversation. That circuit on an analog phone remains exclusively yours for the entire call, even during moments of silence. It is reliable but also inefficient and expensive.

The internet operates on a different, more efficient principle called packet switching. Information is broken into small pieces called data packets. Each packet travels independently across the network. They are reassembled at the destination. This is how all digital data, from emails to websites, travels online. This method is the foundation of the modern internet.

The digital method uses network resources more effectively. This leads to significant cost savings. You are not paying to hold open a dedicated circuit. This digital foundation also enables a world of features. Video conferencing and business SMS are impossible on an analog telephone. The power of a cloud phone system is its digital nature.

Think of the difference this way. A call on landline phones is like a continuous stream of water from a hose. The hose must be directly connected. The water must flow constantly. A VoIP call is like sending a long message in a series of small, numbered buckets. Each bucket is addressed. Each travels its own path. They all arrive and are poured out in order to recreate the message. This method is more robust. It is more flexible.

How Does VoIP Work? (Step-by-Step)

How does your voice actually travel over the internet? It is a precise journey with several distinct steps. Each step uses specific technology to ensure clear, reliable voice calls. This is the heart of how VoIP works.

A. Conversion of Voice to Data

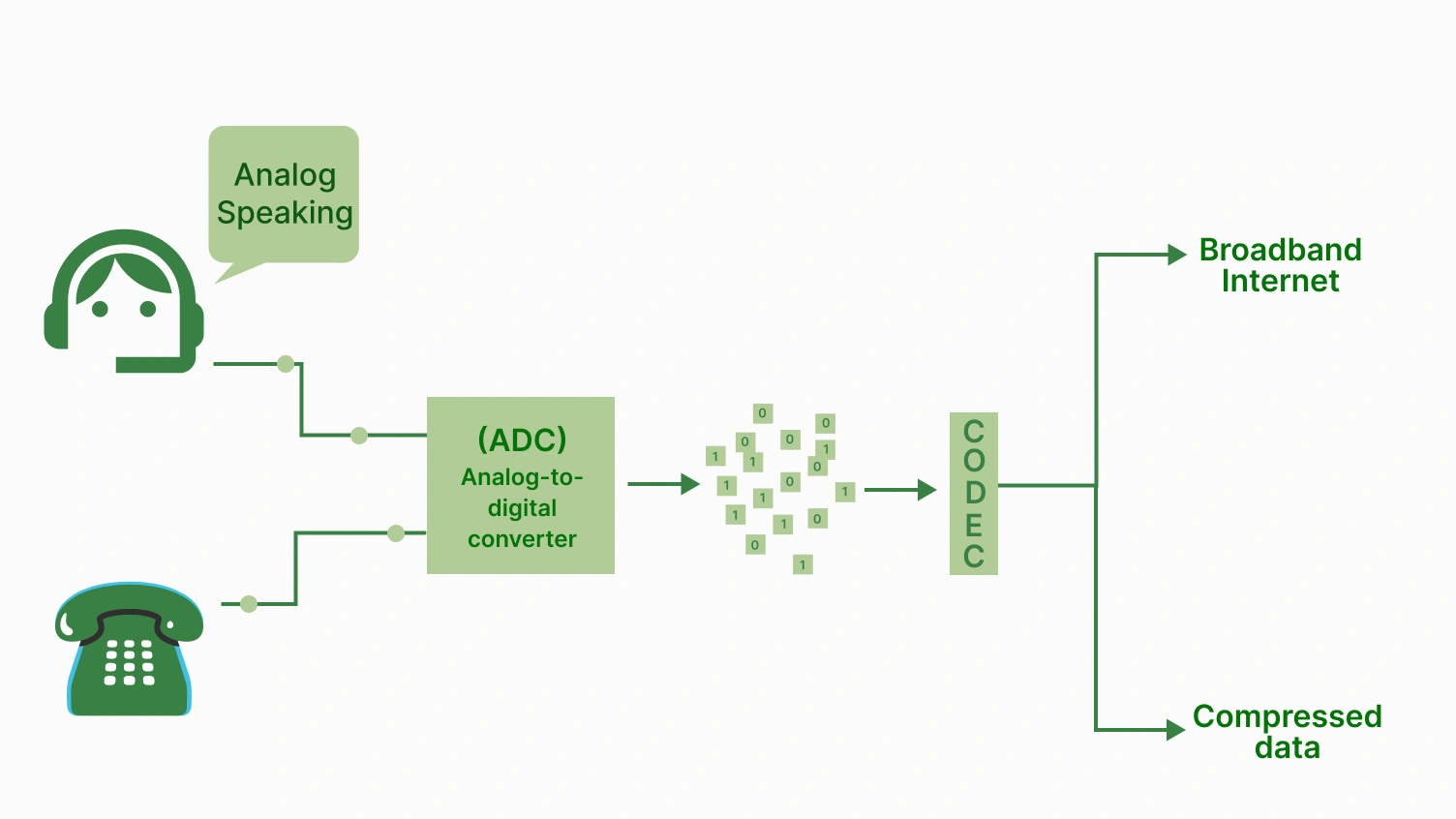

The image displays a diagram illustrating the process of converting analog audio into digital data for transmission over the internet or as compressed data.

The journey begins with your voice. Sound waves from your voice are analog audio signals. The internet only understands digital information. The first step is to translate your voice into a digital language. The microphone in your VoIP phone captures your voice.

A component called an Analog-to-Digital Converter (ADC) then measures these sound waves thousands of times per second. Each measurement becomes a binary number. This creates a stream of digital data. It is a faithful digital copy of your voice.

This digital stream is too large to send efficiently. This is where codecs (coder-decoder) come in. A codec is an algorithm that compresses the voice data on your end. It decompresses it on the receiver’s end. Think of it like zipping a file before an email. Different codecs offer a trade-off between call quality and bandwidth.

For example, the G.711 codec provides HD audio but uses more bandwidth. The G.729 codec is highly compressed. It uses less bandwidth for slower connections. Modern codecs like Opus are adaptive. They adjust quality based on network conditions. Your VoIP provider manages this selection for you. Your voice is now a compressed digital signal.

B. Packetization of Voice

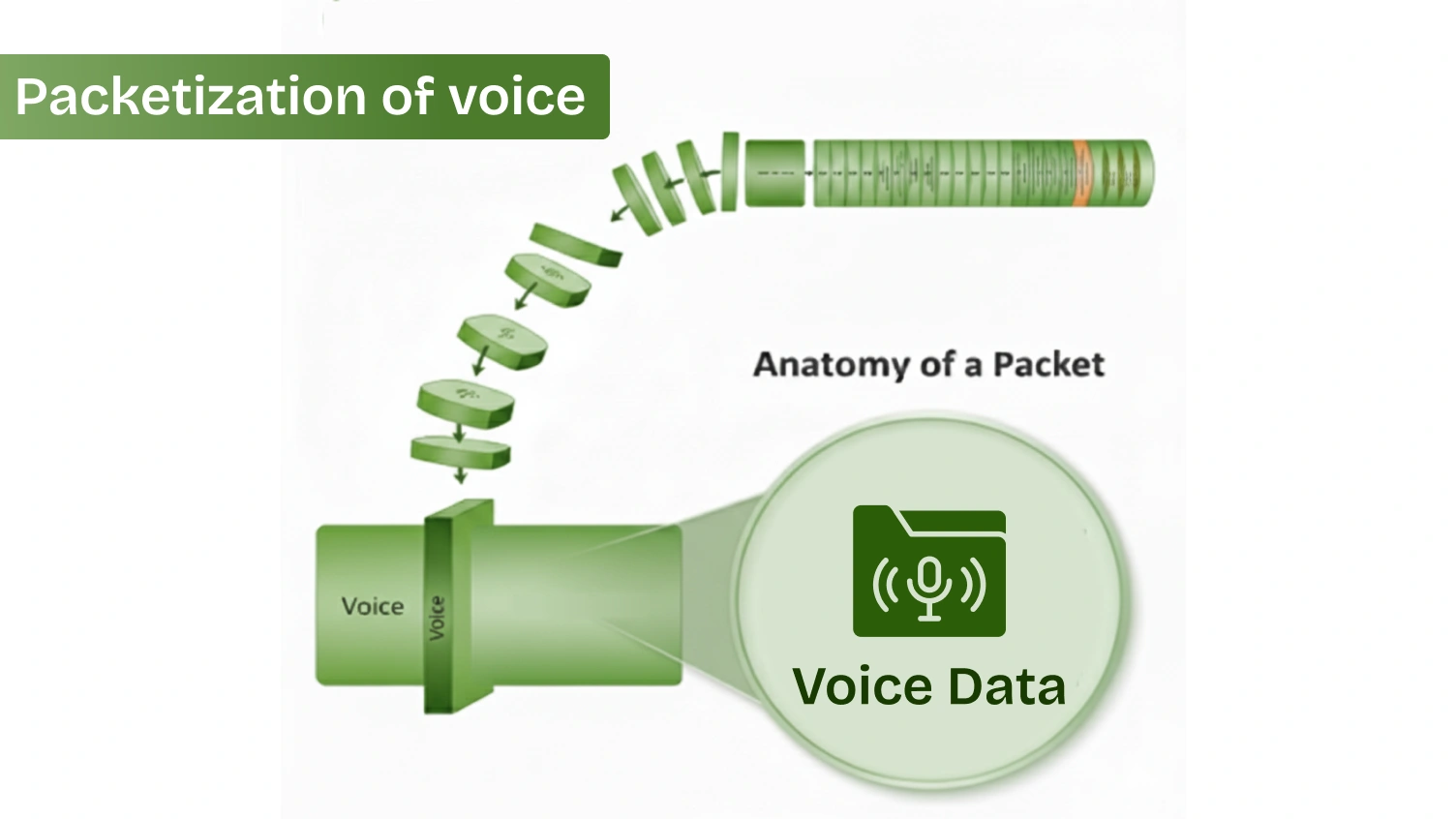

The image shows how packetization of voice works.

Your compressed voice data cannot be sent in one long stream. It must be broken into manageable pieces. This process is called packetization. It is central to packet switching. The continuous stream of voice data is chopped into small segments. Each segment contains about 20-30 milliseconds of audio. Each segment becomes a single data packet.

Each packet is then given a set of instructions. These instructions are added as headers. An IP Header acts as the main address label. It contains the sender’s IP Address and the receiver’s IP Address.

A UDP Header helps transport the packet quickly without waiting for confirmation. This speed is vital for a natural conversation. A final RTP Header adds a timestamp and sequence number. This allows the receiving phone to reassemble the packets in the correct order. The packets are now ready for their journey.

C. Setting Up the Conversation: Signaling (SIP)

Your voice packets are ready. They need instructions on where and when to go. Before any voice data is sent, the two phones must establish a connection. This setup process is called signaling. The most common protocol for this is Session Initiation Protocol (SIP).

SIP is the “negotiator” of the VoIP phone system. It is responsible for creating, modifying, and ending all communication sessions. These sessions can be voice calls, video meetings, or team chat sessions.

The SIP process follows a clear sequence of events.

  1. INVITE: You dial a number on your IP Phone. Your phone sends a SIP “INVITE” message.
  2. RINGING: The recipient’s phone receives the invite. It sends back a “RINGING” message. You hear the ringing tone.
  3. OK: The recipient answers. Their phone sends an “OK” message.
  4. ACK: Your phone sends a final “ACK” (Acknowledge) message.
  5. The Call Begins: The SIP handshake is complete. The phones now start exchanging voice packets.

Inside these SIP messages is the Session Description Protocol (SDP). SDP describes the technical rules of the call. It confirms details like which codec to use and the correct IP addresses for the voice data. Both phones must agree on these rules. SIP is the invisible manager that makes every call possible.

D. Navigating the Network

The call is established. The voice packets must now travel across the public internet. This is a chaotic environment. It is not a dedicated line like the old telephone network. Packets must navigate routers, switches, and firewalls.

Most office networks use Network Address Translation (NAT). NAT lets multiple devices share one public IP address. This is a problem for VoIP. The private IP address inside the SIP message is not reachable from the internet. Firewalls also block unexpected traffic. This can cause “one-way audio” where one person cannot be heard.

These are known as NAT traversal techniques. STUN helps a phone discover its public IP address. TURN acts as a relay server if STUN fails. ICE is a smart framework that tries STUN first. It falls back to TURN only if needed. For a large business phone system, a device called a Session Border Controller (SBC) often manages all security and NAT traversal for the entire organization.

Quality of Service (QoS) is another critical element. The internet treats all data equally by default. This is bad for the voice as it is sensitive to delays. QoS is a set of network techniques that prioritizes voice traffic. It gives voice packets “front-of-the-line” treatment.

In this way, latency (delay), jitter (uneven packet arrival), and packet loss (missing packets) are all minimized. Thus, a well-configured network ensures a reliable VoIP service.

E. De-packetization and Playback

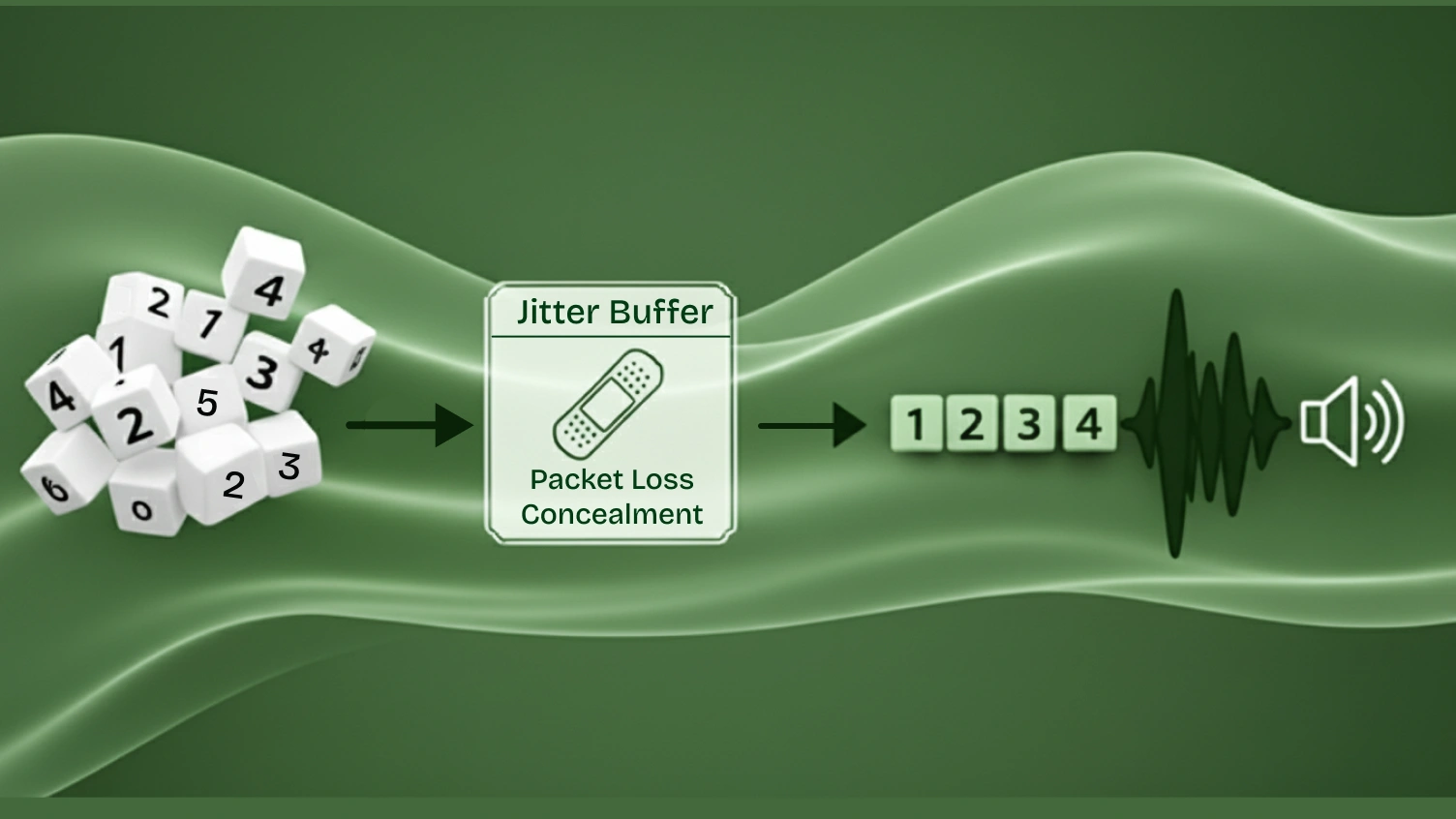

The image shows depacketization and playback of voice.

The packets have arrived at the recipient’s VoIP device. The final step is to turn them back into sound. This reverses the initial process. The receiving phone uses a jitter buffer. This is a small area of memory. It collects the incoming packets. It reorders them correctly. It then plays them out in a smooth, steady stream. This removes the choppy effect caused by jitter.

Packet Loss Concealment (PLC) handles it, which is a clever feature in the phone’s software. It tries to guess what the missing audio sounded like based on the packets that did arrive. It generates a small piece of replacement audio. This prevents jarring silence and is often unnoticeable to the listener.

The ordered, decompressed stream of digital data is fed into a Digital-to-Analog Converter (DAC). The DAC converts the digital numbers back into an analog electrical signal. This signal is sent to the speaker in the office phone’s earpiece. The speaker vibrates. The recipient hears your voice. This entire round trip happens in a fraction of a second.

Essential Components of a VoIP System

A functional VoIP solution is an ecosystem of hardware and services. Understanding these components helps you choose the right setup for your needs. This is the practical side of setting up VoIP.

A. VoIP Phones: Hardware vs. Software

You need a device to make and receive calls. These are the VoIP devices you interact with daily. A physical IP Phone, or hardphone, is a common choice. These are the desk phones you see in an office. They connect via an Ethernet cable and handle all the VoIP processes internally. They are reliable and offer excellent call quality.

A softphone is a software application for a computer or smartphone. This mobile phone / VoIP app uses your device’s microphone, speaker, and internet connection. Softphones provide ultimate flexibility. A remote worker can take business calls on their laptop. They are a core part of modern Unified Communications (UC) platforms.

You can also bridge the old with the new. An Analog Telephone Adapter (ATA) connects old devices to the VoIP network. You can plug your traditional office phone or fax machine into the ATA. The ATA then connects to your internet router. It turns your old analog telephone into a functional VoIP device. This helps you migrate from landline phones without replacing all your hardware at once.

B. The VoIP Server/PBX: The Brains

Every call needs a central switchboard. In VoIP, this is the Private Branch Exchange (PBX). The PBX manages advanced calling features like call routing and call recording. The most popular option today is a Hosted PBX, also known as a cloud phone system.

The PBX is hosted in your VoIP provider’s data centers. You access it over the internet without buying or maintaining any server hardware. This model offers easy scalability and a predictable monthly cost.

Some businesses require more direct control. An on-premise PBX means you own and operate the server hardware yourself. It sits in your office. This gives you complete control and customization. It also requires a large upfront investment and an IT team to manage it. This model is typically for large enterprises with very specific needs. Hybrid models that mix both approaches also exist.

C. Internet Connection: The Lifeline

Your internet connection is the highway for all your voice calls. Its quality and stability are non-negotiable for a good VoIP experience. You do not need massive bandwidth for good call quality. Consistency is the key.

A stable, low-latency connection from a provider like fiber optic or business-grade cable is more important than raw speed. A wired Ethernet connection is always recommended for stationary desk phones as it is more stable than Wi-Fi.

D. Gateways and SIP Trunking: Connecting to the Old World

Your VoIP phone system must connect to people still using landline phones on the old PSTN. A PSTN Gateway is a device that translates calls between the two networks. When you call a landline, your voice packets go to a gateway. The gateway converts them into analog audio signals for the traditional phone networks.

There is a modern way for businesses to connect their own PBX. SIP Trunking is the current standard for connecting an on-premise PBX to the outside world. It replaces old physical phone lines.

A SIP trunk is a virtual connection from your PBX to a VoIP service provider. It is a scalable and cost-effective method for making and receiving all external calls.

Note: Phone Carrier Lookup can be valuable for tracing traditional calls or understanding service providers involved in hybrid systems.

Advanced VoIP Concepts

You now understand the call flow and components. Let’s explore advanced topics. These are critical for running a secure, reliable, and compliant business VoIP system.

A. Security and Privacy in VoIP

As VoIP runs over the internet, VoIP security is a top priority. Encryption is your first line of defense. SRTP (Secure Real-time Transport Protocol) encrypts the voice packets themselves to prevent eavesdropping. TLS (Transport Layer Security) encrypts the SIP signaling messages. This protects call metadata and prevents call manipulation.

In addition, the use of strong passwords blocks unauthorized access. This safeguards against such risks as toll fraud, whereby hackers take over your system to make costly international calls. Other threats are SPIT (Spam over Internet Telephony) and Denial of Service attacks.

Following security best practices is vital. You should choose a provider that prioritizes security, uses strong passwords, keeps software updated, and properly configures your firewall.

B. Emergency Services (E911) and Regulatory Compliance

Emergency calling is a critical consideration. With traditional phone systems, your location is fixed. VoIP’s flexibility creates a challenge. Your VoIP provider uses an Enhanced 911 (E911) system to solve this. You must register a physical address for your phone number.

When you dial 911, this registered address is passed to the emergency operator. It is your responsibility to keep this address updated if you move your device.

In the US, Kari’s Law requires that multi-line phone systems allow users to dial 911 directly without an access code. It also requires notification of the call to be sent to a designated person on-site. The RAY BAUM’S Act builds on this, which requires a “dispatchable location” like a floor or room number to be sent with the 911 call. This helps first responders find callers more quickly.

You must also plan for outages. VoIP phones require power and the internet to work. During an outage, you may not be able to make 911 calls. Always have a backup plan. A charged mobile phone is a simple and effective alternative.

C. Monitoring and Troubleshooting Common VoIP Issues

Most VoIP problems are related to the local network. Knowing how to identify common issues is key.

  • One-Way Audio: You can hear them, but they cannot hear you. This is almost always a firewall or NAT issue blocking incoming voice packets.
  • Choppy/Garbled Audio: This is a classic sign of high jitter or packet loss. Check for network congestion and ensure QoS is active.
  • Echo: You hear your own voice repeated. This can be caused by a poor headset or acoustic feedback from a loud speakerphone.
  • Dropped Calls: Calls terminate unexpectedly. This often points to an unstable internet connection or a firewall issue.

Several tools can help diagnose these problems. A MOS Score (Mean Opinion Score) rates perceived call quality on a scale of 1 to 5. Ping and Traceroute measure latency and show the network path. Many network tests can also measure jitter directly. Most VoIP FAQs from providers address these common issues.

Implementing VoIP: A Practical Checklist

Switching to a VoIP solution can transform your business communications. A well-planned implementation ensures a smooth transition. Follow this step-by-step guide.

A. Assess Your Network Readiness

  1. Test your internet connection using VoIP-specific tests that measure latency, jitter, and packet loss.
  2. Review your router and firewall settings to ensure your router has QoS capabilities and open necessary ports for VoIP traffic.
  3. Configure your router to prioritize voice traffic for high call quality.

B. Choose Your VoIP Provider/Solution

  1. You have to decide between Hosted vs. On-Premise. For most businesses, a hosted cloud phone system offers the best value and flexibility.
  2. List your must-haves, such as call recording, video conferencing, or app integrations.
  3. Choose a provider that can grow with you and check their support options, like a Partner Portal.

C. Select Your Equipment

  1. Decide on desk phones (IP Phones) and softphone apps (Mobile Phone / VoIP Apps).
  2. Consider quality headsets for softphone users to improve call quality.
  3. Use Analog Telephone Adapters (ATAs) if you need to keep legacy devices like a fax machine or an analog phone.

D. Number Porting and Migration Strategy

  1. Initiate the porting process with your new VoIP provider to keep your existing numbers. Do not cancel your old service until the port is complete.
  2. Choose a rollout strategy. A phased approach by the department is often less disruptive than a “big bang” switch.
  3. Configure your call routing, auto-attendant, and call forwarding rules in the new system before going live.

E. Training and Adoption

  1. Schedule training sessions to show your team how to use the new business phones and features.
  2. Highlight the benefits of new tools like business SMS and workflow automation to drive workforce engagement.
  3. Provide simple, quick-reference guides for common tasks.

The Future of Voice Communication

IP Telephony is constantly evolving. The platform of today is just the beginning. Several exciting trends are shaping the future of communication. Artificial intelligence is being integrated into VoIP solutions. It enables powerful features like real-time call transcription and sentiment analysis. This helps improve customer interactions and automates tedious work.

New web technologies are simplifying access. WebRTC (Web Real-Time Communication) allows voice and video calls directly within a web browser. No special app is needed, making it incredibly easy to launch a video meeting from a website. It streamlines guest and customer communication.

The rollout of 5G mobile networks will be a great benefit for mobile VoIP. 5G offers higher speeds and much lower latency. This will lead to superior call quality and reliability for users on a mobile phone / VoIP app. It makes the vision of a truly mobile office a reality.

The overall trend is toward a single, integrated platform. Unified Communications will continue to evolve. It will bring voice calls, video conferencing, team chat, and app integrations into one seamless hub.

Conclusion

We have journeyed from analog audio signals to the complexities of SIP Trunking and VoIP security. You now have a clear picture of how VoIP works. It is not magic but a powerful, efficient technology. It converts your voice into digital data. It sends it across the internet in smart packets.

This understanding is empowering. It removes the mystery from the modern business phone system. It gives you the confidence to evaluate a VoIP provider. VoIP is more than a way to reduce your monthly phone bill cost. It is a strategic tool offering unmatched scalability and features.

Explore what a Dialaxy VoIP solution can do for you, whether you are a business improving communications or an individual seeking flexibility. The world of Voice over Internet Protocol is ready to connect you.

 FAQs

What is the main disadvantage of using VoIP?

The primary requirement is a stable internet connection and a power source, as VoIP services will not work during an internet or power outage.

Do I need a special phone for VoIP?

No, you can use a physical IP desk phone, a software app (softphone) on your computer or mobile phone, or an adapter to connect your current analog phone.

Can VoIP completely replace my traditional landline?

Yes, a VoIP business phone system can fully replace landlines, providing more advanced features like video conferencing and lower overall costs.

Is VoIP as reliable as a landline for call quality?

Yes, modern VoIP uses technology like QoS to prioritize voice traffic and minimize issues like jitter, ensuring call quality is as clear or clearer than a landline.

Does VoIP use your phone number?

Yes, you can keep your existing phone number by porting it to your VoIP provider or get a new one to use with your business phone system.

Is VoIP better than Wi-Fi calling?

While both use the internet, a dedicated VoIP solution offers superior flexibility and more advanced calling features than the basic Wi-Fi calling function on a mobile phone.

Can I just plug a VoIP phone into my router?

Yes, an IP phone is designed to plug directly into your router; once it connects to your VoIP provider over the internet, it is ready to make and receive calls.
